NEXPERIA BZV55-B5V1,115 DIODE

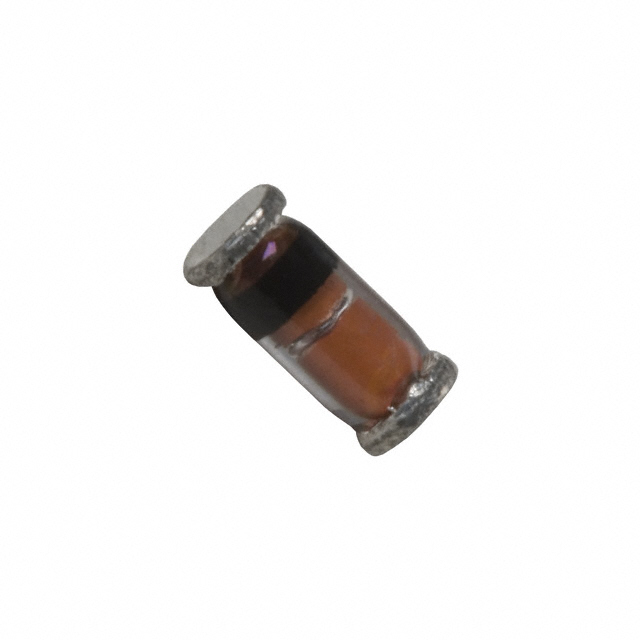

NEXPERIA BZV55-B5V1,115 Zener Diode for Voltage Regulation

BZV55-B5V1,115 Zener Diode for voltage regulation with a 5.1V Zener voltage and 500mW power dissipation.

The NEXPERIA BZV55-B5V1,115 Zener Diode is designed for low-power voltage regulation in electronic circuits. It features a Zener voltage of 5.1V and a power dissipation of 500mW, making it suitable for a wide range of applications. This diode operates within a nominal working voltage range of 2.4V to 75V, ensuring versatility in various electronic projects. The small hermetically sealed glass SMD package provides durability and ease of integration into circuit boards.

With a low differential resistance and a maximum reverse leakage current of just 2µA, the NEXPERIA BZV55-B5V1,115 Zener Diode offers reliable performance. It is available in two tolerance series: 2% and 5%. The diode is ideal for use in power supplies, voltage regulation circuits, and other applications requiring stable voltage levels.

Discover the potential of the NEXPERIA BZV55-B5V1,115 Zener Diode for your electronic needs. Whether you're designing a new circuit or upgrading an existing one, this diode ensures consistent performance. Explore our collection of diodes to find additional components that complement your projects.

Explore quality components from NEXPERIA at DNA. Our selection of Diodes & Transistors includes reliable products that meet your electronic needs. Check other "Diodes & Transistors" that we have in stock.

If you need specific electronic components, reach out to us at DNA. We can help you find what you need or even import it if it's not available. We support both retail and bulk orders. Don't forget to check out related items like Power Supply, Humidity & Temperature Sensor, and more. Contact Us.

Features of NEXPERIA BZV55-B5V1,115 Zener Diode

• Non-repetitive peak reverse power dissipation: 40 W
• Wide working voltage range: 2.4 V to 75 V
• Low differential resistance
• Small hermetically sealed glass SMD package
• Two tolerance series: 2 % and 5 %

Specification of NEXPERIA BZV55-B5V1,115 Zener Diode

• Part Number: BZV55-B5V1,115
• Package: SOD80C (DO-35)
• Configuration: Single Zener diode
• Zener Voltage (V_Z): 5.1V
• Tolerance on Zener Voltage: ±5%
• Power Dissipation (P_tot): 500 mW
• Test Current (I_ZT): 5 mA
• Maximum Reverse Leakage Current (I_R): 2 µA at V_R = 3V
• Zener Impedance (Z_Z): 30 Ω at I_ZT
• Forward Voltage (V_F): 1.1V max at I_F = 100 mA
• Temperature Coefficient: 0.055%/K

Applications of NEXPERIA BZV55-B5V1,115 Zener Diode

• Voltage regulation circuits
• Power supply circuits
• Signal conditioning
• Protection circuits
• Reference voltage applications

Related Links for NEXPERIA BZV55-B5V1,115 Zener Diode for Voltage Regulation

• Other Products from Diodes & Transistors Category

Package Includes

• 1 X NEXPERIA BZV55-B5V1,115 Zener Diode
