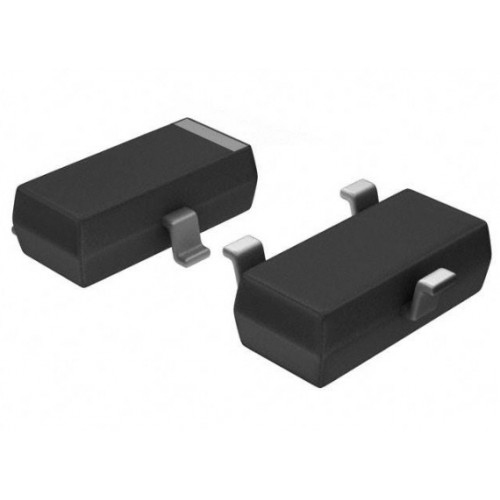

SM712 Tvs Diode Surface Mount SOT 23 3

SM712 Tvs Diode Surface Mount SOT 23 3

The SM712 is a bidirectional transient voltage suppression (TVS) diode designed to protect sensitive electronic components from voltage spikes caused by electrostatic discharge (ESD), electrical fast transients (EFT), and other surge events. It is specifically tailored for use in protecting RS-485/RS-422 data interfaces and operates efficiently in low and high-speed data line applications.

DNA solutions, Nashik has various types of Diodes. Check out our complete collection of Diodes.

• Bidirectional Protection: Protects against both positive and negative voltage transients

• Low Clamping Voltage: Ensures minimal stress on the protected circuit

• High Peak Pulse Power Capability: Handles high energy transients with ease

• Low Capacitance: Maintains signal integrity, making it suitable for high-speed data applications

• Small Package Size: The compact SOT-23-3 package is ideal for space-constrained designs

Specifications of SM712 Tvs Diode Surface Mount SOT 23 3

• Package Type: SOT-23-3

• Power Dissipation: 500mW (DC)

• Response Time: <1ns

• Working Voltage: ±7V

• Breakdown Voltage: ±8.0V minimum

• Clamping Voltage: ±12V

Applications of SM712 Tvs Diode Surface Mount SOT 23 3

• Data Communication Interfaces

• Consumer Electronics

• Automotive Systems

• Industrial Equipment

• Telecommunications

• Security system

• Automatic teller machine

• HFC system

• Networks

Package Includes

      1 x SM712 Tvs Diode Surface Mount SOT 23 3
