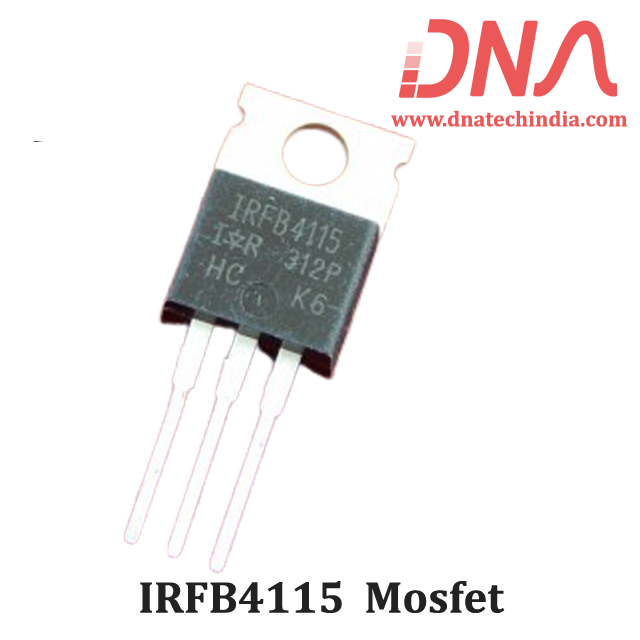

IRFB4115 Power MOSFET
- Product Code: 1161
- Availability: 1
-
Price :
Rs.152.22 (inc GST)Qty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location. |
IRFB4115 Power MOSFET
Features of IRFB4115 MOSFET
- Improved Gate, Avalanche and Dynamic dv/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dI/dt Capability
- Lead Free
- RoHS Compliant, Halogen-Free
- ID @ TC = 25°C Continuous Drain Current, VGS @ 10V 104A
- ID @ TC = 100°C Continuous Drain Current, VGS @ 10V 74A
- IDM Pulsed Drain Current 420A
- PD @TC = 25°C Maximum Power Dissipation 380W
- Linear Derating Factor 2.5W/°C
- VGS Gate-to-Source Voltage +-20 V
- dv/dt Peak Diode Recovery 18V/ns
- TJ Operating Junction -55 to +175oC
- TSTG Storage Temperature Range -55 to +175oC
- Soldering Temperature, for 10 seconds (1.6mm from case) 300oC
Applications of IRFB4115 MOSFET
- High Efficiency Synchronous Rectification in SMPS
- Uninterruptible Power Supply
- High Speed Power Switching
- Hard Switched and High Frequency Circuits
