  • LM7806 Voltage Regulator

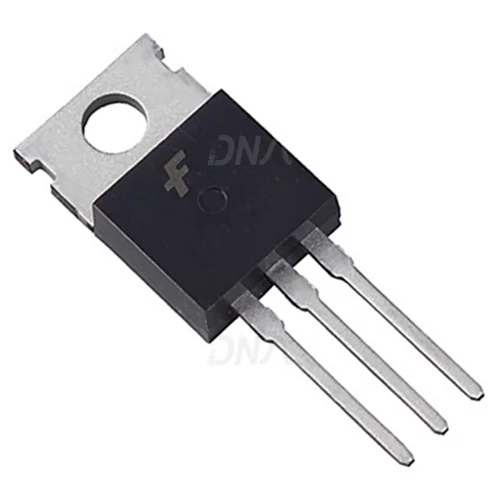

Product Images are shown for illustrative purposes only and may differ from actual product.

LM7806 Voltage Regulator

  • Stock: 11
  • SKU: 0783 | DAA096
  • Rs. 14.16 (inc GST)
    Rs.12.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LM7806 Voltage Regulator

The LM78XX series of three terminal positive regulators are available in the TO-220 package and with several fixed output voltages, making them useful in a wide range of applications.

Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents. LM7806 is the voltage ragulator with the output +6V DC and 1Amp current.

Features of LM7806

  • Output Current up to 1A

  • Output Voltages of 6V

  • Thermal Overload Protection

  • Short Circuit Protection

  • Output Transistor Safe Operating Area Protection

  • Thermal Resistance Junction-Cases (TO-220) RJC: 5 0C/W

  • Thermal Resistance Junction-Air (TO-220) RJA: 65 0C/W

  • Operating Temperature Range TOPR: 0-150 0C

  • Storage Temperature Range TSTG: -65-150 0C
