• P55NF06 N-Channel POWER MOSFET

Product Images are shown for illustrative purposes only and may differ from actual product.

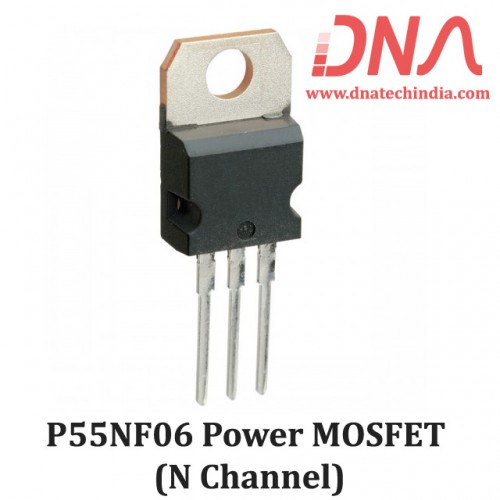

P55NF06 N-Channel POWER MOSFET

  • Stock: 11
  • SKU: 0380 | DAA395

Availability: InStock priceValidUntil: 2025-09-28

  • Rs. 25.96 (inc GST)
    Rs.22.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

P55NF06 N Channel POWER MOSFET

P55NF06 50 Ampere 60 Volts N Channel Power MOSFET in TO220 Package

P55NF06 Power MOSFET is a three-terminal silicon device with current conduction capability of about 50 Ampere, fast switching speed. Low on-state resistance, breakdown voltage rating of 60 Volts, and max threshold voltages of 4 volt. It is mainly suitable electronic ballast, and low power switching mode power appliances.

P55NF06 N Channel Power MOSFET is suitable for use as primary switch in advanced high-efficiency isolated DCDC converters for telecom and computer applications, and applications with low gate charge driving requirements.

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT

If you are in Nasik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 55NF06 Power MOSFET

  • Id - Continuous Drain Current : 55 A
  • Vds - Drain-Source Breakdown Voltage : 60 V
  • Rds On - Drain-Source Resistance : 14 mOhms
  • Transistor Polarity : N-Channel
  • Vgs - Gate-Source Breakdown Voltage : 16 V
  • Maximum Operating Temperature : + 175 C
  • Pd - Power Dissipation : 95 W
  • Mounting Style : Through Hole
  • Package / Case : TO-220-3
  • Fall Time : 20 ns
  • Forward Transconductance - Min : 30 S
  • Minimum Operating Temperature : - 55 C
  • Rise Time : 100 ns
  • Typical Turn-Off Delay Time : 40 ns


Related Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
