Product Images are shown for illustrative purposes only and may differ from actual product.

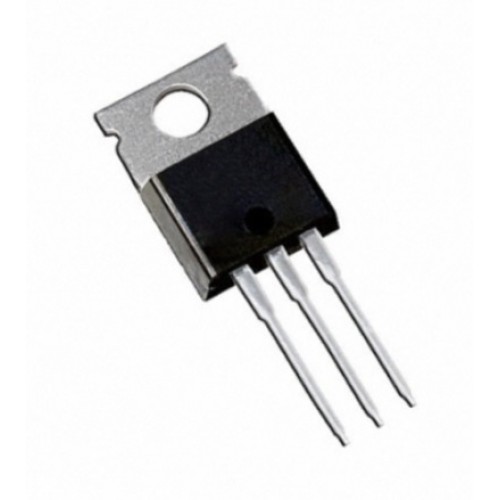

IRF5305PBF 55V P-Channel T-220 Power MOSFET

Write a review | 0 reviews

Stock: 30
Availability: InStock priceValidUntil: 2026-03-07
SKU: 7606 | DAD785

Rs. 100.30 (inc GST)
Rs.85.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

IRF5305PBF 55V P-Channel T-220 Power MOSFET

IRF5305PBF 55V P-Channel T-220 Power MOSFET

The IRF5305PBF is -55V single P channel HEXFET power MOSFET in TO-220AB package. This MOSFET features extremely low on resistance per silicon area, dynamic dv/dt rating, rugged, fast switching and fully avalanche rated as a result, power MOSFET are well know to provide extremely efficiency and reliability which can be used in wide variety of applications. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

DNA solutions, Nashik has various types of MOSFET's. Check out our complete collection of MOSFET's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of IRF5305PBF 55V P-Channel T-220 Power MOSFET

Drain to source voltage Vds is -55V
Gate to source voltage is ±20V
On resistance Rds(on) of 60mohm at Vgs of -10V
Power dissipation Pd of 110W at 25°C
Continuous drain current Id of -31A at Vgs -10V and 25°C
Junction temperature range from -55°C to 175°C

Specifications of IRF5305PBF 55V P-Channel T-220 Power MOSFET

Channel Type- P Channel
Continuous Drain Current Id- 31A
Transistor Case Style- TO-220AB
Rds(on) Test Voltage- 10V
Power Dissipation- 110W
Operating Temperature Max- 175°C

Package Includes

1 x IRF5305PBF 55V P-Channel T-220 Power MOSFET

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
