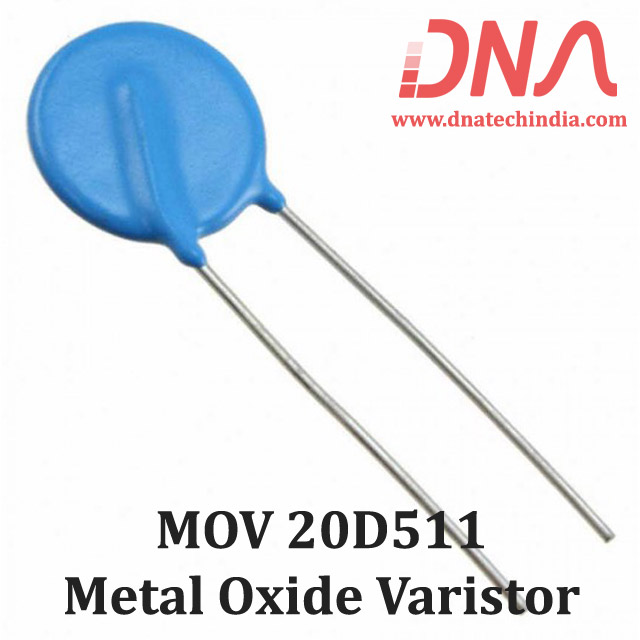

MOV 20D511 Metal Oxide Varistor
- Stock: 44
- SKU: 2931 | DAE584X
-
Rs. 21.24 (inc GST)
Rs.18.00 + GSTQty :
-
Quantity Pricing (inc GST)
5 + 20.18 10 + 19.18 25 + 18.29 50 + 17.35
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
MOV 20D511 Metal Oxide Varistor
MOV 20D511 Metal oxide Varistor for circuit protection against voltage spike
MOV 20D511 is a 20 mm radial leaded varistor devices protects against over voltage transients such as lightning, power contact and power induction. The metal oxide varistors offer a choice of varistor voltages from 18 V to 1800 V and Vrms voltages from 11 V to 1100 V.
Metal oxide varistors, also known as MOVs are one of the most common types of varistors. They are voltage dependent, nonlinear devices that provide transient suppression.
A Metal Oxide Varistor (MOV) is used in power supply circuits as a protection component. MOV are similar to resistors and has only two leads, there is no polarity and can be connected in both directions. MOV is basically used to protect the circuit from high voltage spikes.
MOV have a high current handling, high energy absorption capability and fast response times to protect against transient faults up to rated limits.
DNA Solutions deal in retail as well as in bulk quantity. For bulk quantity feel free to contact us. DNA Solutions has large collection of various values of Metal Oxide Variastors (MOV). Check our complete collection of MOV.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Specifications of MOV 20D511
- Maximum Allowable Voltage (ACrms): 320 Volts
- Maximum Allowable Voltage (DC): 410 Volts
- Varistor Voltage (@1ma): 510 Vdc
- Maximum Energy (J): 220
- Maximum Peak Current (8/20us): 6500A
- Rated Power: 1.0 watt
Features of Metal Oxide Varistor
- High voltage rating
- High current rating
- Bidirectional
- Surge protection
- Fast response time
- High stabilization for circuit voltage
Applications of Metal Oxide Varistor
- Transistor, diode, IC, thyristor or triac semiconductor protection.
- Relay and electromagnetic valve surge absorption.
- Power supplies
- Power systems
- Line voltage
- Telecom systems
- White goods & appliances
Related Videos
- What is a Metal-Oxide Varistor and how it protects your circuit
- How a Surge Protector Works (Metal Oxide Varistor)
Package Includes
1 x MOV 20D431 Metal Oxide Varistor
