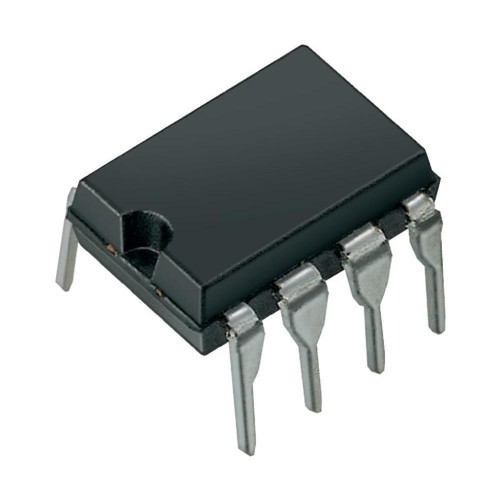

CA3130 BiMOS Op-Amp
- Stock: 1 InStock
- SKU: 0812 | DAA428
115.64 (inc GST)
Rs.98.00 + GST
GST Invoice on all Purchase. So you will be eligible to take input tax credit.
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.
|Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.|
CA3130 BiMOS Op-Amp
CA3130A and CA3130 are op amps that combine the advantage of both CMOS and bipolar transistors.
Gate-protected P-Channel MOSFET (PMOS) transistors are used in the input circuit to provide very-high-input impedance, very-low-input current, and exceptional speed performance. The use of PMOS transistors in the input stage results in common-mode input-voltage capability down to 0.5V below the negative-supply terminal, an important attribute in single-supply applications.
A CMOS transistor-pair, capable of swinging the output voltage to within 10mV of either supply-voltage terminal (at very high values of load impedance), is employed as the output circuit. The CA3130 Op-amp operate at supply voltages ranging from 5V to 16V, (±2.5V to ±8V). They can be phase compensated with a single external capacitor, and have terminals for adjustment of offset voltage for applications requiring offset-null capability. Terminal provisions are also made to permit strobing of the output stage. The CA3130A offers superior input characteristics over those of the CA3130.
Features of CA3130 BiMOS Op-Amp
MOSFET Input Stage Provides :
- Very High ZI = 1.5 TΩ (1.5 x 1012Ω) (Typ)
- Very Low II = 5pA (Typ) at 15V Operation 2pA (Typ) at 5V Operation
Ideal for Single-Supply Applications
Common-Mode Input-Voltage Range Includes Negative Supply Rail; Input Terminals can be Swung 0.5V Below Negative Supply Rail
CMOS Output Stage Permits Signal Swing to Either (or both) Supply Rails
Applications of CA3130 BiMOS Op-Amp
Ground-Referenced Single Supply Amplifiers
Fast Sample-Hold Amplifiers
High-Input-Impedance Comparators (Ideal Interface with Digital CMOS)
High-Input-Impedance Wideband Amplifiers
Voltage Followers (e.g. Follower for Single-Supply D/A Converter)
Voltage Regulators (Permits Control of Output Voltage Down to 0V)
Single-Supply Full-Wave Precision Rectifiers
- Photo-Diode Sensor Amplifiers
