  • GoodSky 5 Volt Sugar Cube Relay

Product Images are shown for illustrative purposes only and may differ from actual product.

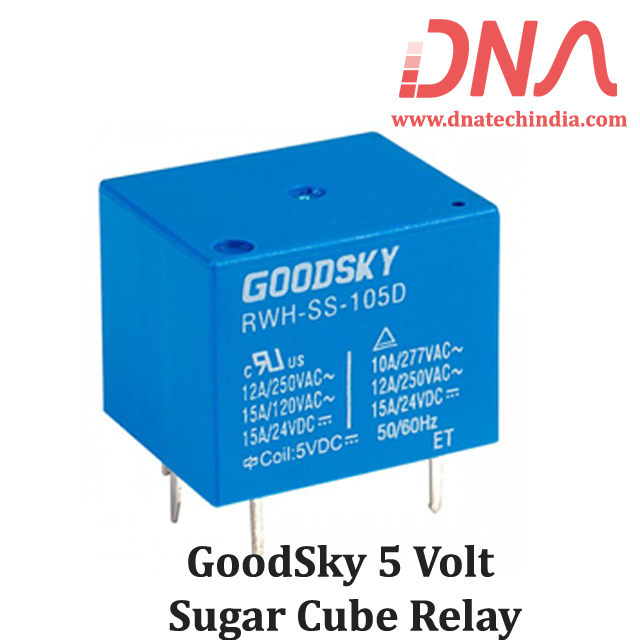

GoodSky 5 Volt Sugar Cube Relay

  • Stock: 10
  • Brand: GoodSky
  • SKU: 2144 | DAB522
  • Rs. 55.46 (inc GST)
    Rs.47.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

RWH-SH-105D Goodsky 5 Volt Cube Relay

Goodsky 5 Volt 7 Ampere Sugarcube Relay RWH-SH-105D

This is a high quality Goodsky Make 5 Volt sugarcube relay. RWH-SH-102D PCB mount sugarcube relay can be used for switching High voltage 230 Volt devices and has current rating upto 7 ampere.

 Feature For RWH-SH-105D 5 volt Cube Relay

  • RW Series Relay covers switching capacity by 10A is spite of miniature size to comply with user’s wide selection.
  • RWH is approved C-UL & TÜV safety standard.
  • The employment of suitable plastic materials is applied under high temperature condition and various chemical solutions.
  • Complete protective construction is designed form dust and soldering flux. If required, plastic sealed type is available for washing procedure.
  • 12A at 120VAC for RW & 12A at 240VAC for RWH are UL approved.

Application For RWH-SH-105D 5 Volt Sugarcube Relay

  • Domestic Appliances
  • Office Machines
  • Audio Equipment
  • Coffeepot
  • Control Units

Performance (at Initial Value)

  • Contact Resistance : 100mΩ Max.@1A,6VDC
  • Operate Time:10 mSec. Max.
  • Release Time : 5 mSec. Max.
  • Dielectric Strength : Between Coil & Contact (1,000VAC at 50/60 Hz for one minute.)/(Between Contacts : 500VAC at 50/60 Hz for one minute)
  • Surge Strength : 3,000V (between Coil  & Contact 1.2x50µSec.)
  • Insulation Resistance : 100 MegaΩ Min. at 500VDC.
  • Max. On/Off Switching : Electrical(30 ops per Minute)/Mechanical (300 ops per Minute)
  • Temperature Range : -30~55°C
  • Humidity Range : 45~85% RH.
  • Coil Temperature Rise : 35°C Max.
  • Vibration : Endurance (10 to 55 Hz dual)/ amplitude width 1.5mm.
  • Error Operation : 10 to 55 Hz dual/amplitude width 1.5mm.
  • Shock : Endurance (1,000 m/S2 min)/Error Operation(100 m/S2 min)
  • Life Expectancy : Mechanical(107 Operations at No Load condition)/Electrical(105 Operations at RatedResistive Load)
  • Weight : About 11 g.

Safety Standard & File Number

  • RW : UL- E141060
                   CSA-LR76598
  • RWH : C.UL- E141060

                      TÜV-R9854380
