  • IRS2112 High and Low Side MOSFET and IGBT Driver

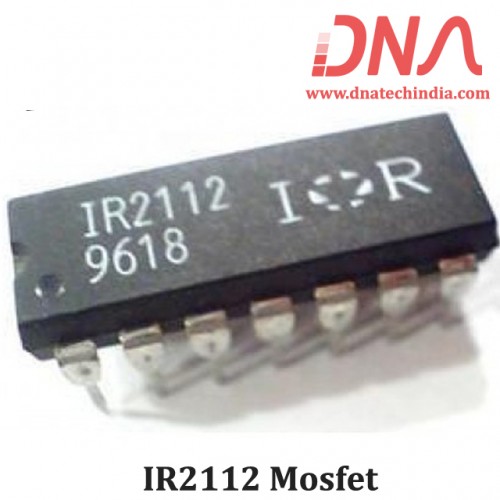

Product Images are shown for illustrative purposes only and may differ from actual product.

IRS2112 High and Low Side MOSFET and IGBT Driver

  • Stock: 4
  • SKU: 0698 | DAA300
  • Rs. 177.00 (inc GST)
    Rs.150.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

IRS2112 High and Low Side MOSFET and IGBT Driver

The IRS2112 is a high voltage, high speed power MOSFET and IGBT driver with independent high- and low-side referenced output channels.

Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays are matched to simplify use in high frequency applications. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V.

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of IRS2112

  • Floating channel designed for bootstrap operation

  • Fully operational to +600 V

  • Tolerant to negative transient voltage, dV/dt immune

  • Gate drive supply range from 10 V to 20 V

  • Under voltage lockout for both channels

  • 3.3 V logic compatible

  • Separate logic supply range from 3.3 V to 20 V

  • Logic and power ground +/- 5 V offset

  • CMOS Schmitt-triggered inputs with pull-down

  • Cycle by cycle edge-triggered shutdown logic

  • Matched propagation delay for both channels

  • Outputs in phase with inputs

  • RoHS Compliant
