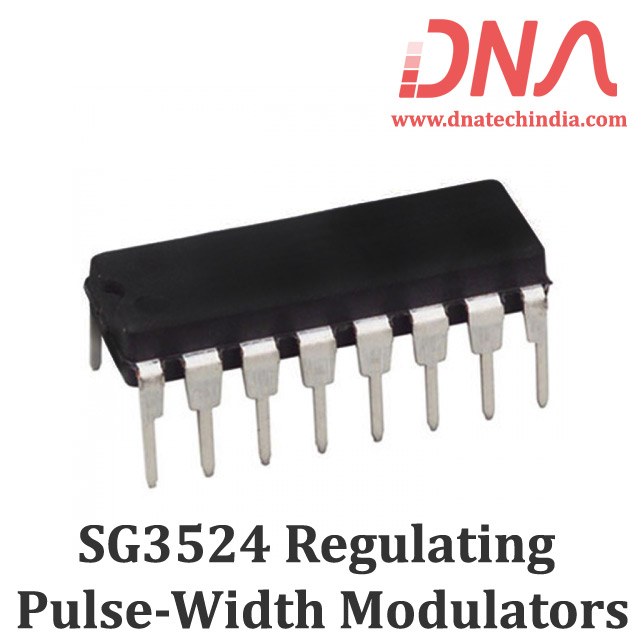

SG3524 Regulating Pulse Width Modulator IC

SG3524 Regulating Pulse Width Modulator IC

The SG2524 and SG3524 devices incorporate all the functions required in the construction of a regulating power supply, inverter, or switching regulator on a single chip. They also can be used as the control element for high-power-output applications. The SG2524 and SG3524 were designed for switching regulators of either polarity, transformer-coupled dcto-dc converters, transformerless voltage doublers, and polarity-converter applications employing fixed frequency, pulse-width modulation(PWM) techniques.

The complementary output of SG3524 IC allows either single-ended or push-pull application. Each device includes an on chip regulator, error amplifier, programmable oscillator, pulse-steering flip-flop, two uncommitted pass transistors, a high-gain comparator, and current limiting and shutdown circuitry.

DNA solutions,Nashik has various types of Power IC's. Check out our complete collection of  Power IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SG3524 Regulating Pulse-Width Modulators

  • Complete Pulse-Width Modulation (PWM) Power control circuitry
  • Uncommitted outputs for single-ended or push-pull applications
  • 8-mA (TYP) standby current

Applications of SG3524 Regulating Pulse-Width Modulators

  • Transformer-coupled DC/DC converters
  • Switching-regulators of any polarity

Package Includes

1X SG3524 Regulating Pulse Width Modulator IC
