  • XL4001 DC to DC Converter

Product Images are shown for illustrative purposes only and may differ from actual product.

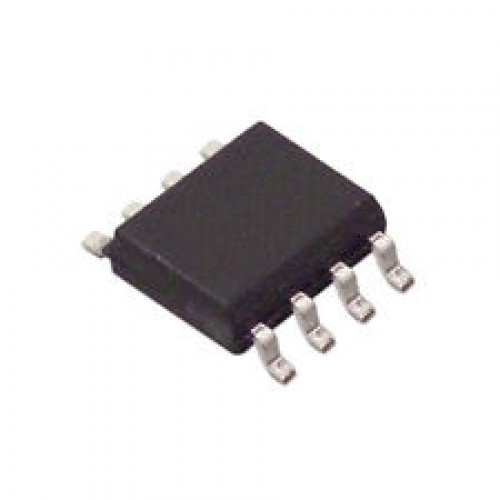

XL4001 DC to DC Converter

  • Stock: 37
  • Brand: XL Semi
  • SKU: 1218 | DAB629
  • Rs. 57.82 (inc GST)
    Rs.49.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

XL4001 DC to DC Converter

The XL4001 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2 Ampere load with high efficiency, low ripple and excellent line and load regulation.

Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function is built inside. An internal compensation block is built in to minimize external component count.

Features of XL4001 DC to DC Converter IC

  • Wide 4.5V to 40V Input Voltage Range
  • Output Adjustable from 1.235V to 37V
  • Minimum Drop Out 1.5V
  • Fixed 150kHz Switching Frequency
  • 2A Constant Output Current Capability
  • Internal Optimize Power Transistor
  • Excellent line and load regulation
  • TTL shutdown capability
  • ON/OFF pin with hysteresis function
  • With output constant current loop
  • Built in thermal shutdown function
  • Built in current limit function
  • Built in output over voltage protection
  • SOP8-EP (Exposed PAD) package

Applications of XL4001

  • Car Charger
  • Battery Charger
  • LED Constant Current Driver
