Product Images are shown for illustrative purposes only and may differ from actual product.

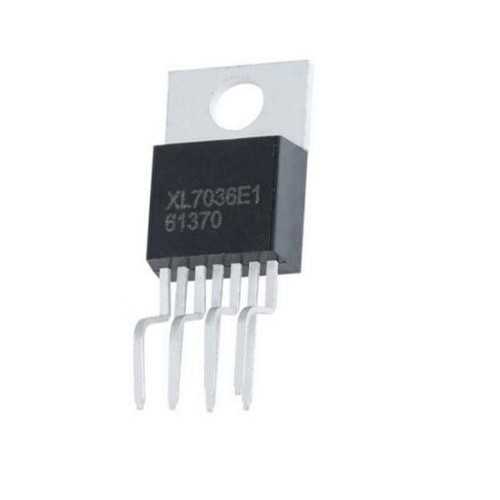

XL7036 buck converter IC


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-05-06

  • Brand: XL Semi
  • SKU: 1675 | DAA676

Availability: NotInStock priceValidUntil: 2026-05-06

  • Rs. 118.00 (inc GST)
    Rs.100.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

XL7036 buck converter IC

XL7036 DC to DC Step down Converter IC

The XL7036 from XL Semi is a 150 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2.1 Ampere load with high efficiency, low ripple and excellent line and load regulation. The main advantage of using XL7036 step down DC to DC converter is its input voltage range which is from 12 volts to 90 volts. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%.

Features of XL7036 DC to DC converter IC

  • Operation Voltage from 12 Volts to 90 Volts
  • Maximum Duty Cycle up to 100%
  • Minimum Drop Out 0.5 Volts
  • Adjust Vout from 1.25 Volts to 20 Volts
  • Max. Iout = 2.1 Ampere at Vout = 5 Volts
  • Max. Iout = 1 Ampere at VOUT = 12 Volts or 15 Volts
  • Max. output power less than 15 Watts
  • Fixed 150KHz Switching Frequency
  • Internal Optimize High Voltage Power MOSFET
  • High efficiency up to 90%
  • Excellent line and load regulation
  • Built in output short Protection Function
  • Built in current limit function
  • TO220-7L package

Applications of XL7036 IC

  • Ebike Controller Power Supply
  • Telecom / Networking Equipment

Related LINKS

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
