• 10A RC TX Controlled Relay Switch PWM Receiver

Product Images are shown for illustrative purposes only and may differ from actual product.

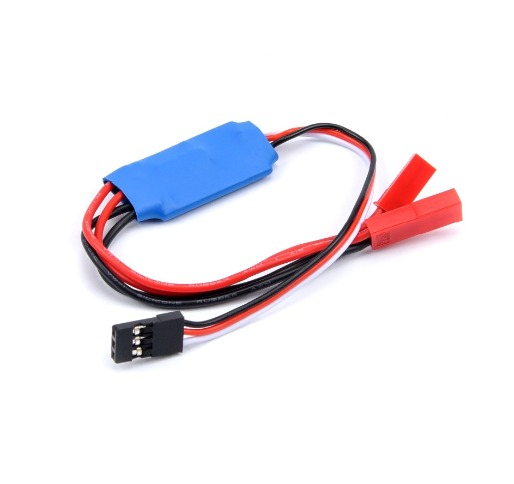

10A RC TX Controlled Relay Switch PWM Receiver

  • Stock: Out Of Stock
  • SKU: 8223 | DAH842

Availability: NotInStock priceValidUntil: 2025-09-29

  • Rs. 552.25 (inc GST)
    Rs.468.01 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

10A RC TX Controlled Relay Switch PWM Receiver

10A RC TX Controlled Relay Switch PWM Receiver

This is a NEW 10A RC TX Controlled Relay Switch PWM Receiver LED Control Spray Switch

Normal Mode: The module can read a pulse width that can range from 400 to 2600us. If the width of the pulse is more than 1800us, the MOSFET switch will close, if less than 1200us, the MOSFET switch will open.

Safe-protection Function: The pulse is more than 1800us at first power-up, the MOSFET switch open. The LED will blink, you should move the input to the off position, then normal more will active. 2. The signal is bad continuously for 500ms, the MOSFET switch open. The LED will blink. When the signal is good, the device will deactivate safe-protection mode.

DNA solutions, Nashik has various types of Relay switch's. Check out our complete collection of Relay Switch's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 10A RC TX Controlled Relay Switch PWM Receiver

  • This module is a nice little relay switch controlled by a spare auxiliary channel on your receiver. Ideal for switching lights, sound, and any other auxiliary electrical items
  • When PWM duty is more than 1500us, the switch will turn on; when PWM duty is less than 1400us, the switch will turn off

Specifications of 10A RC TX Controlled Relay Switch PWM Receiver

  • Item Type: Relay Switch
  • RX lead length: 100mm
  • Power lead length: 100mm
  • Cable Thickness: 20

Package Includes

      1 x 10A RC TX Controlled Relay Switch PWM Receiver

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
