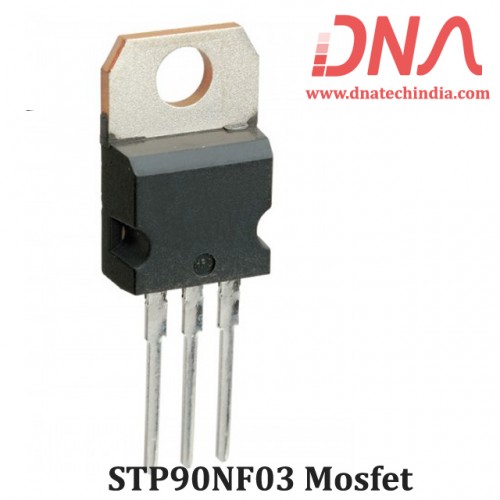

  • STP90NF03 Power MOSFET

Product Images are shown for illustrative purposes only and may differ from actual product.

STP90NF03 Power MOSFET

  • Price :

    Rs.38.94 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

STP90NF03 Power MOSFET

This application specific Power MOSFET is the third generation of STMicroelectronics unique “Single Feature Size strip-based process. The resulting transistor shows the best trade-off between on-resistance and gate charge. When used as high and low side in buck regulators, it gives the best performance in terms of both conduction and switching losses. This is extremely important for motherboards where fast switching and high efficiency are of paramount importance.

Features of STP90NF03 MOSFET

  • Optimal RDS(on) x Qg trade-off
  • Conduction losses reduced
  • Switching losses reduced
  • VDS Drain-source voltage (VGS= 0)30V
  • VGS Gate-source voltage± 20V
  • ID Drain current (continuous) at TC= 25°C90A
  • ID Drain current (continuous) at TC=100°C65AIDM
  • Drain current (pulsed)360A
  • PTOT Total dissipation at TC= 25°C150W
  • Derating factor 0.73 W/°C
  • TJ Operating junction temperature -65 to 175°C
  • Tstg Storage temperature 175°C
