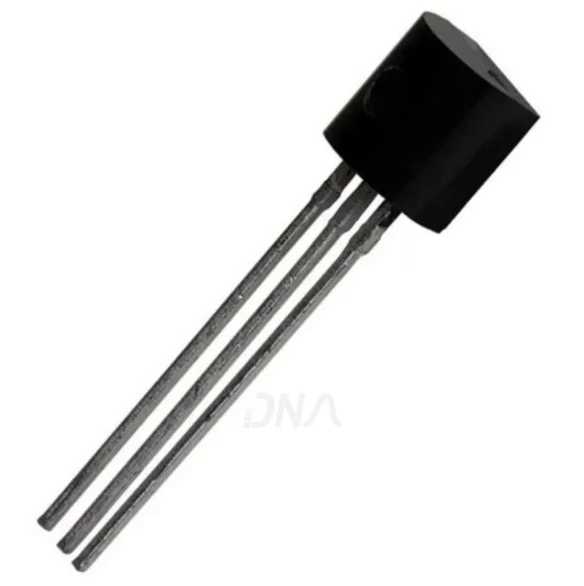

TL431 Adjustable Precision Shunt Voltage Regulator

TL431 Adjustable Precision Shunt Voltage Regulator

TL431 Adjustable Shunt Regulator, regulates 2.5V to 36V, high precision reference voltage.

The TL431 Adjustable Precision Shunt Voltage Regulator is designed for flexibility in applications requiring voltage regulation. With an adjustable output range from 2.5V to 36V, this component is ideal for creating stable voltage references in various electronic devices. Its low output noise and dynamic impedance ensure reliable performance, making it a preferred choice for engineers.

This regulator operates efficiently across a wide temperature range from -40°C to +125°C. The TL431 Adjustable Precision Shunt Voltage Regulator is suitable for use in voltage reference circuits, shunt regulation, and switching power supplies. Its robust design allows for effective overvoltage protection and battery charging applications.

Engineers seeking a dependable solution will find the TL431 Adjustable Precision Shunt Voltage Regulator meets their needs. Its programmable output via an external resistor divider enhances usability, making it a staple in electronic component design. Explore its potential in your next project today.

Discover the reliability of Voltage Regulators with DNA solutions, featuring the TL431 from a trusted Manufacturer. Explore our range of Voltage Regulators for your electronic needs. Check other Voltage Regulators that we have in stock.

At DNA, we cater to all your electronic component needs. If you’re looking for specific parts like Transistors, Connectors, or even Sensor Modules, reach out to us. We can import items if they are not available and support retail and bulk orders. Contact Us.

Features of TL431 Adjustable Precision Shunt Voltage Regulator

• Programmable output voltage
• High precision reference voltage
• Low temperature coefficient
• Wide operating voltage range
• Low output noise and dynamic impedance
• Stable over a broad temperature range

Specification of TL431 Adjustable Precision Shunt Voltage Regulator

• Reference Voltage (Vref): 2.495V (typical)
• Adjustable Output Voltage Range: 2.5V to 36V
• Dynamic Output Impedance: 0.2Ω
• Temperature Range: Operating: -40°C to +125°C
• Package Options: TO-92, SOT-23, SOIC-8

Applications of TL431 Adjustable Precision Shunt Voltage Regulator

• Voltage Reference
• Shunt Regulator
• Switching Power Supplies
• Overvoltage Protection
• Battery Chargers

Package Includes

• 1 X TL431 Adjustable Precision Shunt Voltage Regulator
