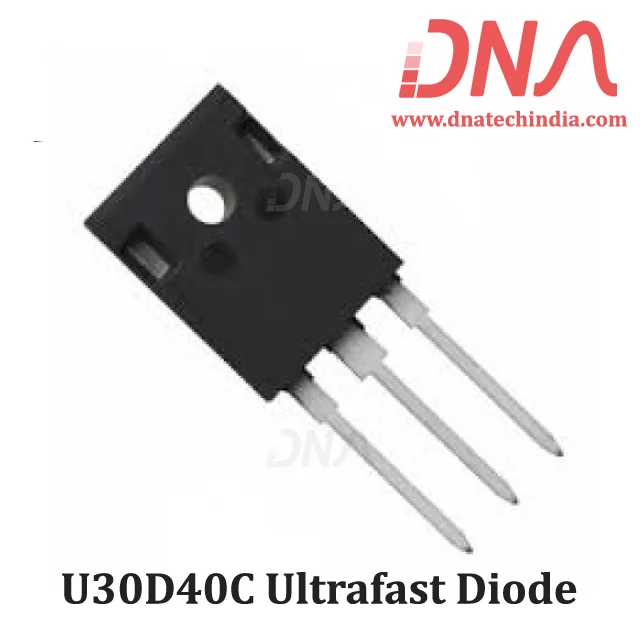

U30D40C Ultrafast Diode

U30D40C Ultrafast Diode

We have Various sizes of Diode. Check out our complete collection of Diode.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of U30D40C Diode

  • Glass Passivated Die Construction
  • Super-Fast Switching
  • Low Forward Voltage Drop
  • Low Reverse Leakage Current
  • High Surge Current Capability
  • Plastic Material has UL Flammability
  • Classification 94V-O
  • Case : TO-3P, Molded Plastic
  • Terminals : Plated Leads Solderable per MIL-STD-750, Method 2026
  • Weight : 5.6 grams (approx.)
  • Mounting Position : Any
  • Mounting Torque : 11.5 cm-kg (10 in-lbs) Max.
  • Operating Temperature Max : 150°C
  • Forward Current If(AV) : 30A
  • Forward Surge Current Ifsm Max : 300A
  • Diode Configuration : Dual Common Cathode
  • Reverse Recovery Time trr Max : 50ns
  • Repetitive Reverse Voltage Vrrm Max : 400V
  • Forward Voltage VF Max : 1.3V

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
