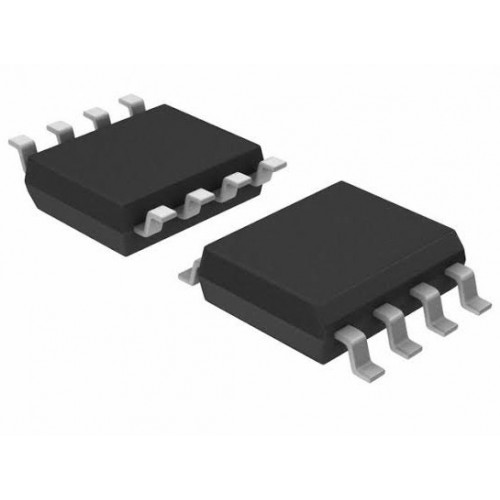

Product Images are shown for illustrative purposes only and may differ from actual product.

UC2842 8PIN CURRENT MODE PWM CONTROLLER IC


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-03-04

  • SKU: 7836 | DAH500

Availability: NotInStock priceValidUntil: 2026-03-04

  • Rs. 180.54 (inc GST)
    Rs.153.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

UC2842 8PIN Current Mode PWM Controller IC

UC2842 8PIN PWM Controller IC for efficient power management with peak current control.

The UC2842 8PIN Current Mode PWM Controller IC is designed for efficient power management in applications such as switch-mode power supplies and DC-to-DC converters. This controller features a programmable operating frequency of up to 500 kHz, enhancing overall efficiency while reducing electromagnetic interference. The current-mode control simplifies feedback loop compensation, ensuring reliable performance in high duty-cycle applications.

With an input voltage range of 7V to 30V, the UC2842 8PIN Current Mode PWM Controller IC operates with a typical start-up current of just 0.5 mA. This low power consumption makes it ideal for battery chargers and motor controllers. Its cycle-by-cycle current limiting enhances safety and performance.

For Indian customers seeking reliable power management solutions, the UC2842 8PIN Current Mode PWM Controller IC offers stability and efficiency. This component is perfect for a variety of applications, including LED drivers. Explore the potential of this IC to optimize your electronic projects.

Explore the latest in the Motor Driver category with DNA. Discover the UC2842 8PIN Current Mode PWM Controller IC and enhance your designs. Check other Motor Driver that we have in stock.

If you need more electronic components, **DNA** can help. We support retail and bulk orders. If you can't find specific parts like LCDs, Nextion Displays, or Sensors, we can import them for you. Contact Us.

Features of UC2842 8PIN Current Mode PWM Controller IC

  • Simplifies feedback compensation
  • Reduces power dissipation
  • Programmable frequency up to 500 kHz
  • Improves efficiency
  • Cycle-by-cycle current limiting

Specification of UC2842 8PIN Current Mode PWM Controller IC

  • Input Voltage Range: 7V to 30V
  • Start-Up Current: 0.5 mA
  • Operating Current: 10 mA
  • Output Current: ±1 A
  • Oscillator Frequency: 100 kHz to 500 kHz

Applications of UC2842 8PIN Current Mode PWM Controller IC

  • Switch-Mode Power Supplies
  • DC-to-DC Converters
  • Battery Chargers
  • Motor Controllers
  • LED Drivers

Package Includes

  • 1 X UC2842 8PIN Current Mode PWM Controller IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
