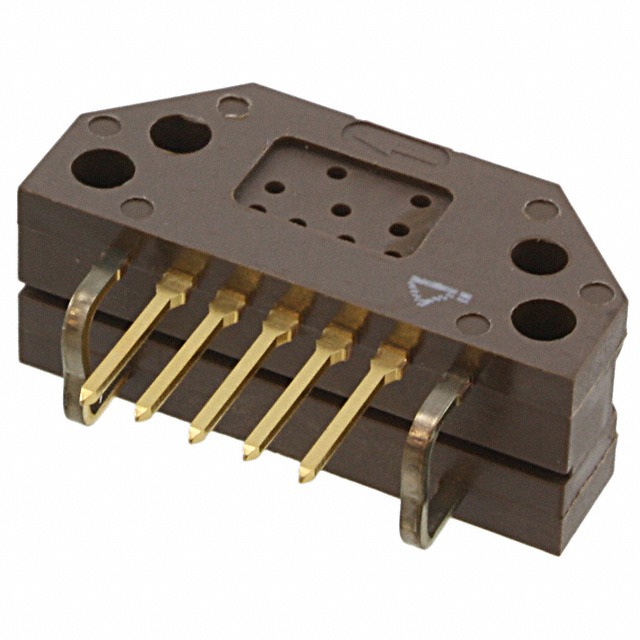

HEDS-9140 F00 Three Channel Optical Incremental Encoder Sensor Module

HEDS-9140 F00 Optical Incremental Encoder Sensor Module

HEDS-9140 F00 Encoder Module, Optical sensing, 1024 CPR, TTL output.

The HEDS-9140 F00 Optical Incremental Encoder Sensor Module offers precise rotary position detection. With its optical sensing technology, this encoder module delivers high performance in motion control applications. It features a compact design, making it ideal for systems with limited space. The module supports resolutions up to 1024 counts per revolution, providing accurate feedback for motor control. Designed for easy assembly, it integrates seamlessly with various code wheels.

This encoder operates within a wide temperature range of −40°C to +100°C, ensuring reliability in diverse environments. The HEDS-9140 F00 Optical Incremental Encoder Sensor Module is suitable for industrial applications where precision is critical. Its quadrature output format allows for directional and speed information, making it a versatile choice for engineers.

Explore the capabilities of the HEDS-9140 F00 Optical Incremental Encoder Sensor Module for your next project. This encoder is perfect for applications requiring accurate position referencing and control. Whether you're working on robotics or automation systems, this encoder module meets the demands of modern engineering.

At DNA, we offer a wide range of Sensor Modules from top manufacturers. Explore the reliability of the HEDS-9140 F00 Encoder and enhance your projects. Check other Sensor Modules that we have in stock.

If you're looking for specific electronic components, DNA can help. We support retail and bulk orders, and we can import parts if they are not available. Check out our range of SMPS, Capacitors, Inductors, Sensors, DC to DC Converter ICs, and Diodes. Contact Us.

Features of HEDS-9140 F00 Optical Incremental Encoder Sensor Module

• Optical Sensing Technology
• Quadrature Output
• High Resolution
• Compact Form Factor
• Index Pulse
• Wide Operating Temperature Range
• Easy Assembly

Specification of HEDS-9140 F00 Optical Incremental Encoder Sensor Module

• Power Supply Voltage: 5V
• Output Format: Quadrature signals (A and B)
• Resolution: Up to 1024 CPR
• Maximum Operating Speed: Up to 30,000 RPM
• Output Signal Type: TTL-compatible
• Operating Temperature Range: −40°C to +100°C
• Shaft Diameter Compatibility: Various

Applications of HEDS-9140 F00 Optical Incremental Encoder Sensor Module

• Precision motion control
• Motor feedback systems
• Robotics
• Industrial automation
• Measurement systems

Package Includes

• 1 X HEDS-9140 F00 Three Channel Optical Incremental Encoder Sensor Module
