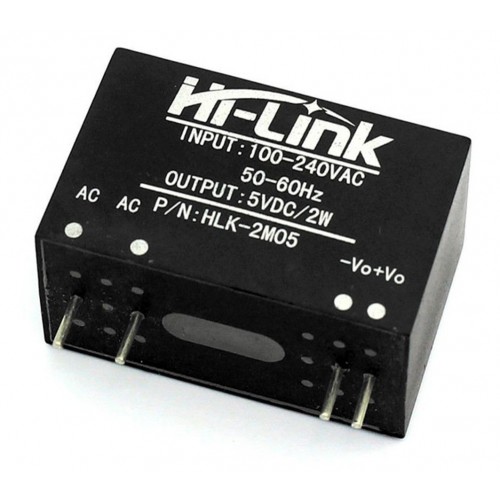

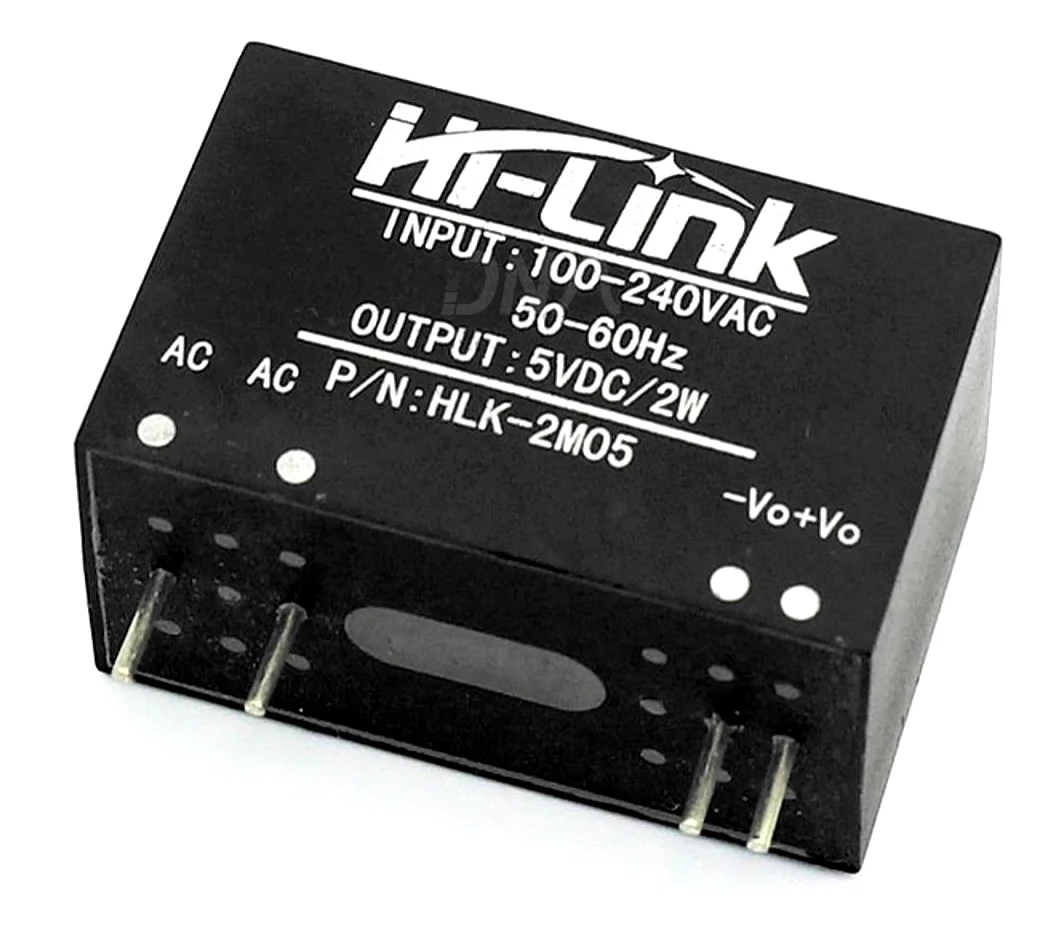

Hi-Link HLK-2M05 2W Isolated AC-DC Power Supply Module

HLK-2M05 isolated AC-DC module with 5 V, 400 mA output, 2 W rated power and short-circuit protection.

The Hi-Link HLK-2M05 is an isolated AC-DC power module that converts a 90–245 Vac input to a nominal 5 V DC output. It delivers up to 400 mA output with a rated power of 2 W, making it suited to low-power electronic systems.

Its short-circuit protection restores normal output after the fault is removed. A four-pin layout keeps AC input and DC output connections clear, while low no-load power loss helps limit energy use when the load is off.

Use this compact module in smart home systems, automation controls, communications equipment and instrumentation where an AC input must supply a low-voltage DC circuit.

Shop Hi-Link products at DNA, an Indian retailer of electronic components. Explore our Hi-Link Power Supply Module range for AC-DC power conversion needs. Check other Hi-Link Power Supply Module that we have in stock

DNA supports Indian electronics buyers with retail and bulk supply, plus import support when a part is hard to find. Contact us about DC to DC Converter Modules, sensors, displays and development boards. Contact Us

Features of Hi-Link HLK-2M05 2W Isolated AC-DC Power Supply Module

Isolated AC-to-DC conversion
Short-circuit protection with output recovery after the fault clears
Output over-current protection
Four-pin layout separates AC input and DC output connections
Low power loss when there is no load

Specifications of Hi-Link HLK-2M05 2W Isolated AC-DC Power Supply Module

Rated output power: 2 W
Output voltage: 5 Vdc (5.0 ± 0.1 Vdc at no load)
Rated output current: 400 mA
Input voltage: 90–245 Vac range
Efficiency: ≥69% at 110 Vac and ≥70% at 220 Vac, at full load
Output ripple and noise: ≤50 mVp-p at rated input and full output load
Operating temperature: −25 to +60 °C
Dimensions: 30 × 16 × 19 mm

Applications of Hi-Link HLK-2M05 2W Isolated AC-DC Power Supply Module

Smart home systems
Automation control
Communications equipment
Instrumentation

Package Includes

1 X Hi-Link HLK-2M05 2W Isolated AC-DC Power Supply Module
