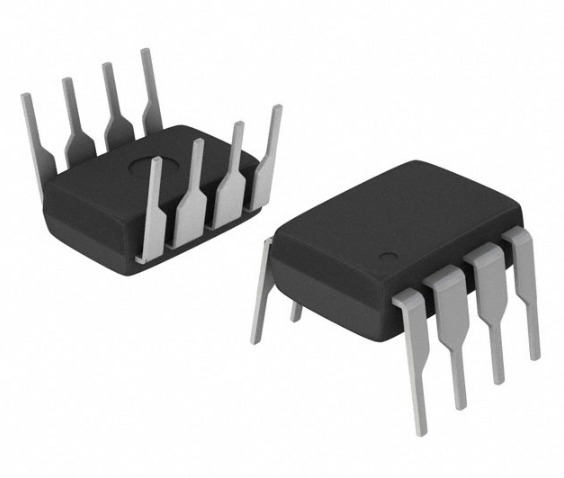

Product Images are shown for illustrative purposes only and may differ from actual product.

INA122PA Instrumentation Amplifier 1 Circuit 8-PDIP IC


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-10-06

  • SKU: 8055 | DZZ064

Availability: NotInStock priceValidUntil: 2026-10-06

  • Rs. 451.85 (inc GST)
    Rs.382.93 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

INA122PA Instrumentation Amplifier IC

INA122PA Amplifier IC designed for precision amplification with low offset voltage and adjustable gain.

The INA122PA Instrumentation Amplifier IC is engineered for precision amplification of low-level differential signals. It features low offset voltage, ensuring accurate signal processing while rejecting high common-mode voltages. With a gain range of 5 to 10,000 set by an external resistor, this amplifier is versatile for various applications.

Powered by a single or dual supply, the INA122PA is suitable for battery-operated devices due to its low power consumption. It operates efficiently in a wide voltage range from 2.7V to 36V, making it ideal for portable devices, medical instrumentation, and industrial process control.

The compact 8-PDIP package of the INA122PA Instrumentation Amplifier allows for easy integration into space-constrained designs. Its applications include weighing scales, strain gauge amplifiers, and portable devices, ensuring reliability and performance in diverse environments.

Explore the precision of Instrumentation Amplifiers with DNA solutions. We offer the Texas Instruments INA122PA, designed for accurate signal amplification. Check other Instrumentation Amplifiers that we have in stock.

At DNA, we understand the needs of Indian electronics buyers. If you cannot find certain parts, reach out to us. We can import missing components and support both retail and bulk orders. Check out our range of related items, including Sensors, Capacitors, LCDs, and more. Contact Us.

Features of INA122PA Instrumentation Amplifier IC

  • Low Offset Voltage
  • Adjustable Gain
  • Low Power Consumption
  • Single-Supply and Dual-Supply Operation
  • Small Package Size

Specification of INA122PA Instrumentation Amplifier IC

  • Supply Voltage (Vs): 2.7V to 36V (single supply) / ±1.35V to ±18V (dual supply)
  • Input Offset Voltage: 250 µV (typical)
  • CMRR: 90 dB (minimum)
  • Gain Range: 5 to 10,000 (set by external resistor)
  • Quiescent Current: 60 µA (typical)
  • Operating Temperature: -40°C to +85°C

Applications of INA122PA Instrumentation Amplifier IC

  • Medical Instrumentation
  • Industrial Process Control
  • Weighing Scales
  • Portable Devices
  • Strain Gauge Amplifiers

Package Includes

  • 1 X INA122PA Instrumentation Amplifier IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
