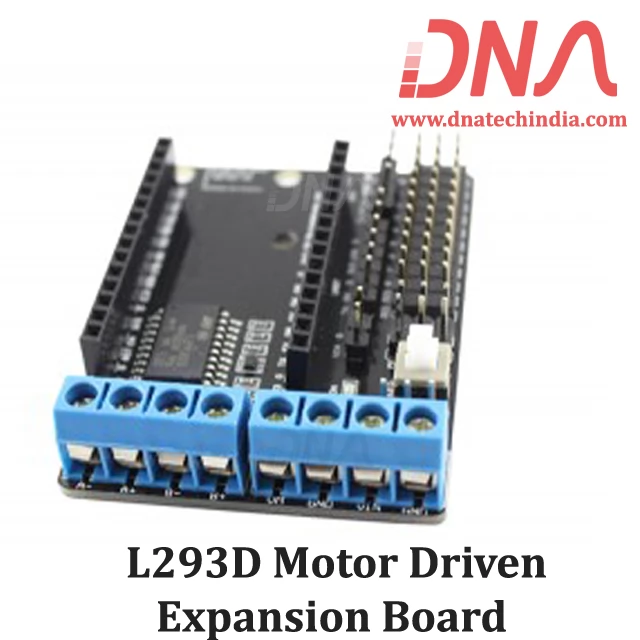

L293D Motor Driven Expansion Board for Node Mcu Lua Wifi Board
- Stock: 1
- SKU: 0598 | DAA768
-
Rs.
826.00 (inc GST)
Rs.700.00 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |
L293D Motor Driven Expansion Board for Node Mcu Lua Wifi Board
This is the first motor-driven expansion board that based on ESP- 12E development platform.
When inserting ESP-12E module, please note the direction consistent with an expansion board antenna; The use of short modules that can simultaneously control board and motor.
Features of L293D Motor Driven Expansion Board(ESP8266) for Node Mcu Lua Wifi Board
- ESP12 DEV KIT development board expansion module;
- lead ESP12 DEV KIT all the features of pins : SPI, UART, GPIO, AI and 3.3V power connector;
- extend two-way motor-driven, two-way direct drive motor;
- on board power switch;
- L293D
- Motor power, control power separation; In the experiment, a short circuit can block the merger, shorted to VIN and VM, while power supply to the motor and the control board.
Specification of L293D Motor Driven Expansion Board(ESP8266) for Node Mcu Lua Wifi Board
- Motor Power Range : 4.5V ~ 36V
- control supply range : 4.5V ~ 9V
- Logical operating current Iss : ≤60mA (Vi = L), ≤22mA (Vi = H);
- Driving part of the work current Io : ≤1.2A;
- Maximum power dissipation : 4W (T = 90 ℃)
- Control signal input level : High : 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V
- Operating temperature : -25 ℃ ~ + 125 ℃
- Drive Type : Dual high-power H-bridge driver
- ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)
- Motor Power Range : 4.5V ~ 36V
- control supply range : 4.5V ~ 9V
- Logical operating current Iss : ≤60mA (Vi = L), ≤22mA (Vi = H);
- Driving part of the work current Io : ≤1.2A;
- Maximum power dissipation : 4W (T = 90 ℃)
- Control signal input level : High : 2.3V≤VIH≤VIN; Low: -0.3V≤VIL≤1.5V
- Operating temperature : -25 ℃ ~ + 125 ℃
- Drive Type : Dual high-power H-bridge driver
- ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)
