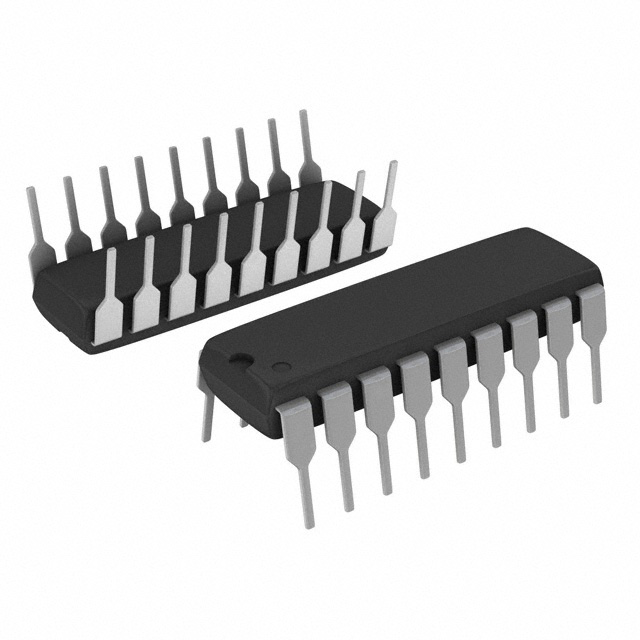

  • L6202 DMOS Full-Bridge Driver DIP IC

Product Images are shown for illustrative purposes only and may differ from actual product.

L6202 DMOS Full-Bridge Driver DIP IC


Write a review | 0 reviews

  • Stock: Out Of Stock
  • SKU: 9304 | DAD333
  • Rs. 358.72 (inc GST)
    Rs.304.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

L6202 DMOS Full-Bridge Driver DIP IC

L6202 DMOS Full-Bridge Driver DIP IC

The L6202 DMOS Full-Bridge Driver DIP IC is a versatile and robust integrated circuit designed to control DC and stepper motors in a full-bridge configuration. Utilizing DMOS technology, this driver offers high efficiency and low power dissipation, making it suitable for demanding motion control applications. It features a wide operating voltage range, high output current capability, and built-in protection features such as thermal shutdown and overcurrent protection. With its DIP package, it is easy to integrate into various designs, including robotics, automation systems, and industrial motor drivers.

DNA solutions, Nashik has various types of Bridge Driver IC's. Check out our complete collection of Bridge Driver IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of L6202 DMOS Full-Bridge Driver DIP IC

  • DMOS full-bridge driver design
  • High output current capability
  • Wide supply voltage range
  • Low power dissipation and high efficiency
  • Overcurrent and thermal protection

Specifications of L6202 DMOS Full-Bridge Driver DIP IC

  • Part number: L6202
  • Output current: 2.5A continuous, 5A peak
  • Supply voltage: up to 48V
  • Operating temperature range: -20°C to +150°C
  • Switching frequency: up to 100 kHz

Applications of L6202 DMOS Full-Bridge Driver DIP IC

  • DC motor and stepper motor drivers
  • Robotics and automation systems
  • Industrial motor control
  • Actuator and valve control systems
  • CNC and precision motion applications

    Package Includes

          1 x L6202 DMOS Full-Bridge Driver DIP IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
