Product Images are shown for illustrative purposes only and may differ from actual product.

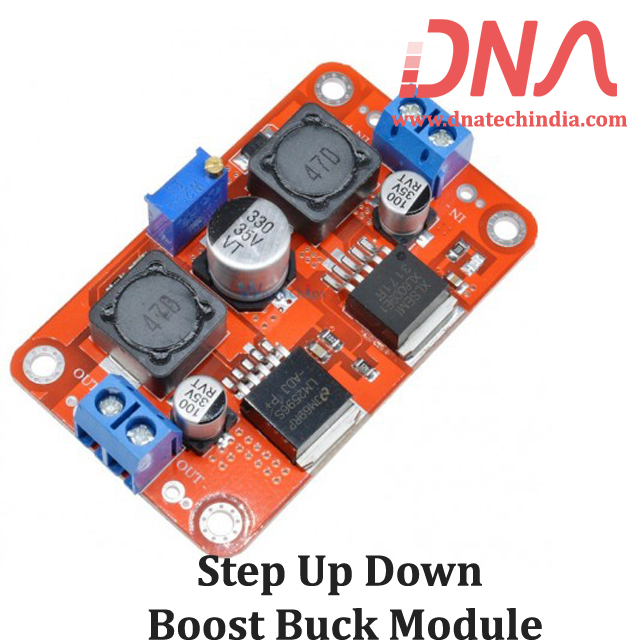

Step Up Down Boost Buck Module

Write a review | 1 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-10-21
Brand: Generic
SKU: 1599 | DAB417

Rs. 181.72 (inc GST)
Rs.154.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Step Up Down Boost Buck Module

XL6009 LM2596S DC-DC Step Up Down Boost Buck Voltage Power Converter Module

This is a non-isolated Step up and step down ( boost as well as buck) constant voltage (CV) DC-DC converter Module. The main advantage of using this module is the output voltage remains fixed even if the input voltage goes below or above the set voltage.

In this you can set the output voltage anywhere from 1.25 volts to 26 volts and even if the input voltage varies from 3.5 volts to 28 volts the output voltage will remain fixed as per the set voltage (which can be adjusted using on-board trim pot).

This module is perfect for solar application where you want to give constant 12 to 14 volts to charge your battery but the the output of the solar panel varies according to the sunlight.

We have Various sizes of DC to DC Converter Modules. Check out our complete collection of DC to DC Converter Modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications

Input : 3.5-28 Volts.
Output : 1.25 Volts - 26 Volts.
Output voltage independent of input voltage (3.5V-28V input, any value output 1.25V-26V).
Maximum input current 3 Ampere.
Maximum output 3 Ampere.
Rated input 1 Ampere, Output 1 Ampere.
Size : 5.2cm x 3.8cm x 2cm

Package Included:

1xXL6009 LM2596S DC-DC Step Up Down Boost Buck Voltage Power Converter Module
