Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

EDR-150-24 is a 24 V DC single-output DIN-rail power supply, rated at 6.5 A and 156 W with 230 VAC input, with AC/DC input support.

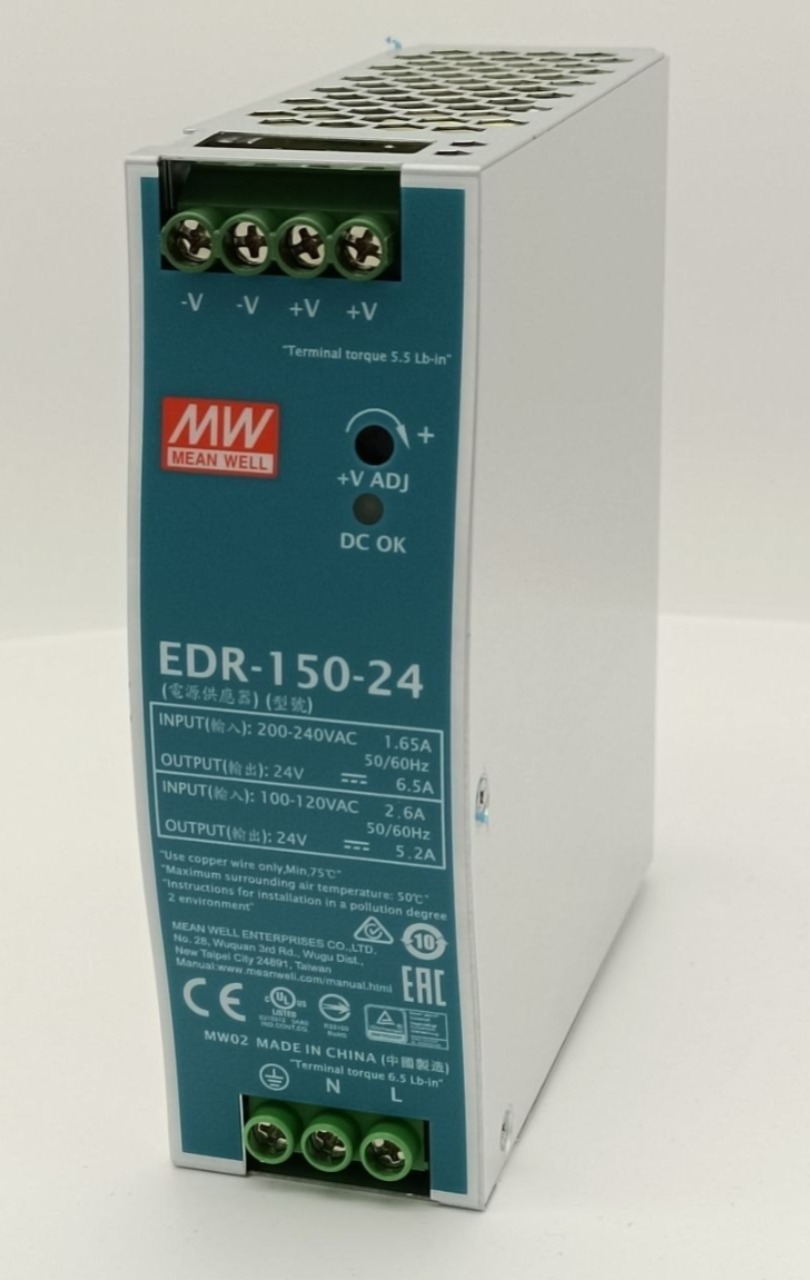

Mean Well EDR-150-24 is a single-output DIN-rail power supply that converts AC or DC input to a 24 V DC output. It can deliver up to 156 W with a 230 VAC input, making it suited to control panels that need power for connected equipment.

Its 40 mm-wide metal housing helps save cabinet space and supports heat transfer. Free-air convection cooling avoids the need for a fan. Short-circuit, overload, overvoltage and overtemperature protection help guard the supply and connected loads. Overload limiting uses constant current and recovers once the fault clears.

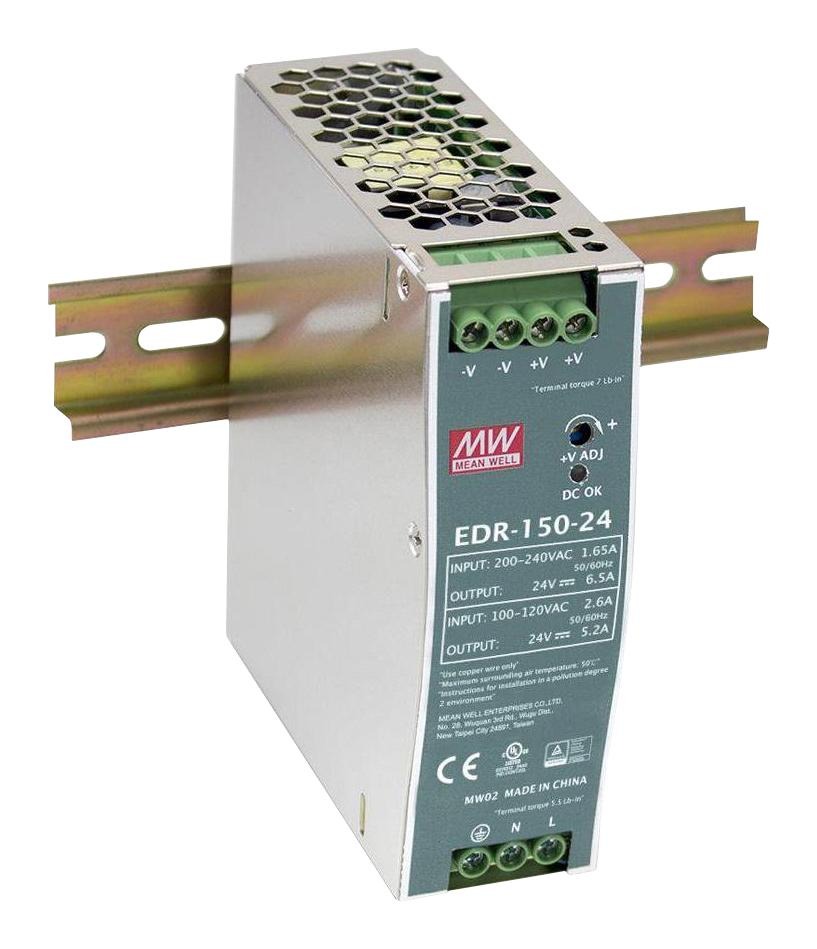

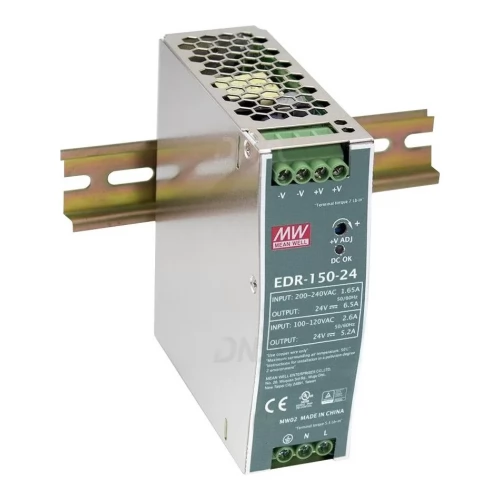

Mount the unit on a TS-35/7.5 or TS-35/15 rail in industrial control systems, factory automation, semiconductor fabrication equipment or electro-mechanical apparatus. The 24 V DIN-rail power supply combines AC/DC input operation with fan-free convection cooling and built-in protection for panel power needs.

DNA offers Mean Well power supplies for industrial and control applications. Explore our Meanwell SMPS range to find a suitable unit for your setup. Check other Meanwell SMPS that we have in stock

If you cannot find the part you need, contact DNA for import support and retail or bulk orders. Ask us about development boards, Analog IC, IGBT, DC to DC Converter Module, programmers and sensor modules. Contact Us

Features of Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

• Universal AC input with DC input support
• Constant-current overload limiting with automatic recovery after the fault clears
• Short-circuit, overvoltage and overtemperature protection
• Free-air convection cooling
• Metal housing
• Mounts on TS-35/7.5 or TS-35/15 DIN rail

Specifications of Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

• DC output voltage: 24 V
• Rated output current: 6.5 A at 230 VAC
• Rated output power: 156 W at 230 VAC
• Input voltage range: 90–264 VAC
• Output voltage adjustment range: 24–28 V
• Typical efficiency: 87%
• Operating temperature: −20 to +60 °C
• Dimensions (W × H × D): 40 × 125.2 × 113.5 mm

Applications of Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

• Industrial control systems
• Semiconductor fabrication equipment
• Factory automation
• Electro-mechanical apparatus

Related Links for Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply

• Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply Datasheet

• Other Products from Meanwell SMPS Category

Package Includes

• 1 X Mean Well EDR-150-24 150 W Single-Output DIN-Rail Power Supply
