AI-Thinker A7 GSM / GPS Module

  • Stock: Out Of Stock
  • SKU: 1643 |
  • Rs. 1,412.46 (inc GST)
    Rs.1,197.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

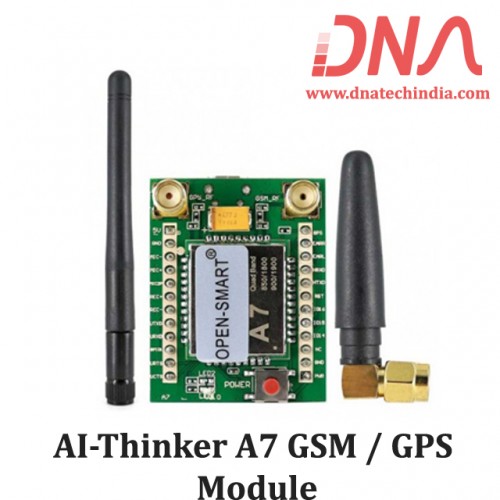

AI-Thinker A7 GSM / GPS Module

THIS PRODUCT IS NOT IN STOCK. Instead you can can buy A7 GSM GPS Shield

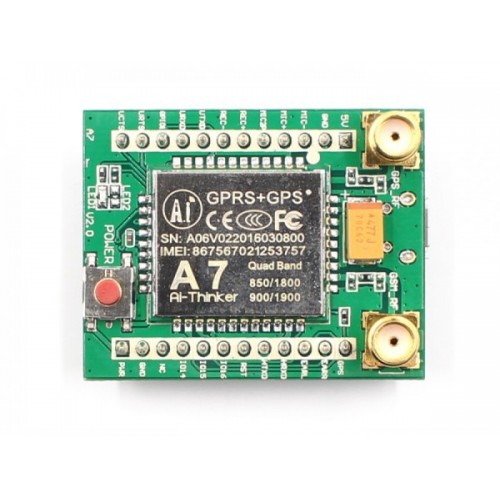

This is serial GSM / GPS core development board based on AI-Thinker's A7 module. It supports dual-band GSM/GPRS network, available for GPRS and SMS message data remote transmission.
The board features compact size and low current consumption. With power saving technique, the current consumption is as low as 3mA in sleep mode. It communicates with micro-controller via UART port, supports command including GSM 07.07, GSM 07.05 and Ai-Thinker enhanced AT Commands.

We have Various sizes of GPS-GSM Module. Check out our complete collection of GPS-GSM Module.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

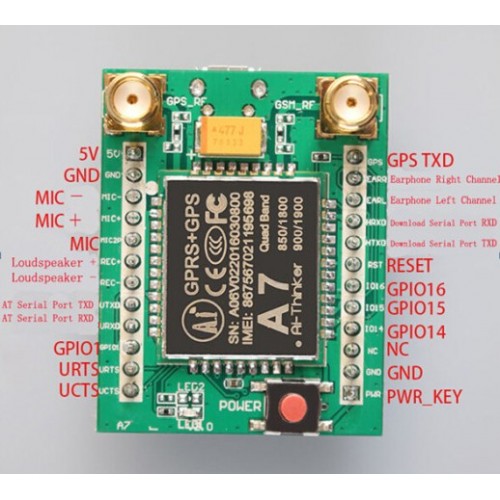

Features

  • Working frequency : quad-band network, 850 / 900 / 1800 / 1900MHZ
  • Working voltage : 5VDC- Working Current: maximum of 2A
  • Sleep Current : 5mA
  • Onboard Micro SIM card holder, you can install Micro SIM card
  • Onboard Micro USB interface for external power supply
  • Communication Interface : TTL serial port
  • Baud rate : 115200bps and it can also be set by AT command.
  • GPS serial port baud rate : 9600bps, GPS_TXD can output NEMA information
  • Interface logic voltage : 3.3V
  • Make and answer phone calls using a headset and electret microphone.
  • Send and receive SMS messages.
  • Send and receive GPRS data (TCP/IP, HTTP, etc.) .
  • Be used to test the Ai-Thinker GPRS / GPS A7 module
  • Pin pitch : 2.54mm
  • Onboard antenna interface : SMA

About the Antenna

  • Suitable for SIM800L GSM modules / Arduino SIM900 GPRS Shield
  • Frequency : 780MHz ~ 960MHz 1710MHz ~ 2170MHz
  • Antenna gain : +2.0 ± 0.7 dBi @ 880 MHz, +2.0 ± 0.7 dBi @ 1800 MHz
  • S.W.R <= 2.0 @ 2100 MHz ~ 2500 MHz
  • Output Impedance : 50 Ohm
  • Antenna interface : SMA

Package includes

  • 1 x GPRS A7 Serial GPRS / GPS Module Core Developemnt Board for Arduino, 1 x GPRS antenna, 1 x GPS antenna

Reference Link
