5A Overcurrent Protection Sensor Module
- Stock: Out Of Stock
- SKU: 3245 | DAD363
-
Rs. 385.86 (inc GST)
Rs.327.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

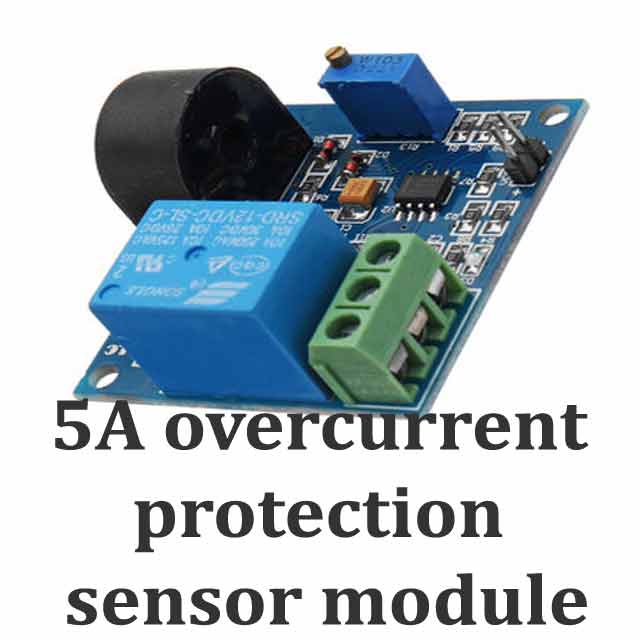

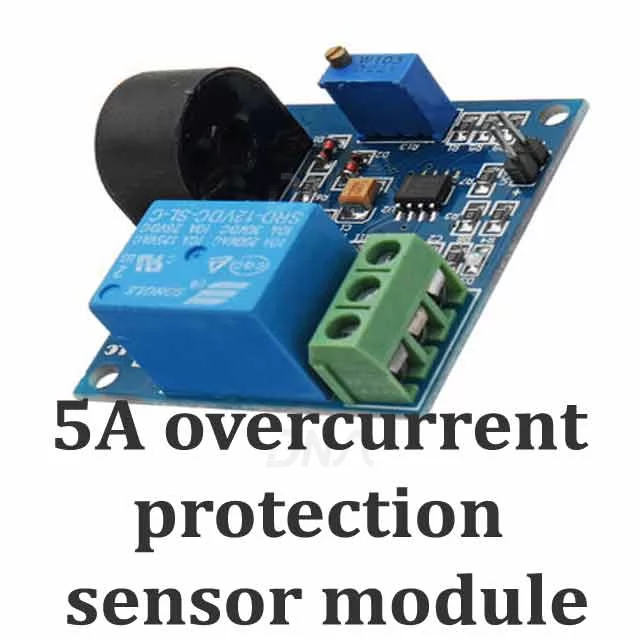

5A Overcurrent Protection Sensor Module
5A 12V Overcurrent Protection AC Current Detection Sensor Module
5A Over-current protection Sensor module uses a current transformer to collect the AC signal to achieve the relay over-current signal output within 0-5A. Relay pull while over-current, relay released while not over-current.
DNA solutions, Nashik has various types of Sensor Modules. Check out our complete collection of Sensor Module's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Functions Of 5A Overcurrent Protection Sensor Module.
- Current detection resolution can change the parameter of resistance parameters.
- Output over-current switching signal output.
- The over-current signal setting critical point adjustable.
Specifications Of 5A Overcurrent Protection Sensor Module.
- Working Voltage: DC 5A/12V
- Working Current: ＜20mA
- Frequency Range: 20Hz~400Hz
- Output Mode: Switching Signal Output
- Temperature Range: -40°~+85°
- Humidity: 0~95%RH
- Size: 4.4x3.8cm/1.73x1.5"
Package Includes
1x 5A overcurrent protection sensor module
