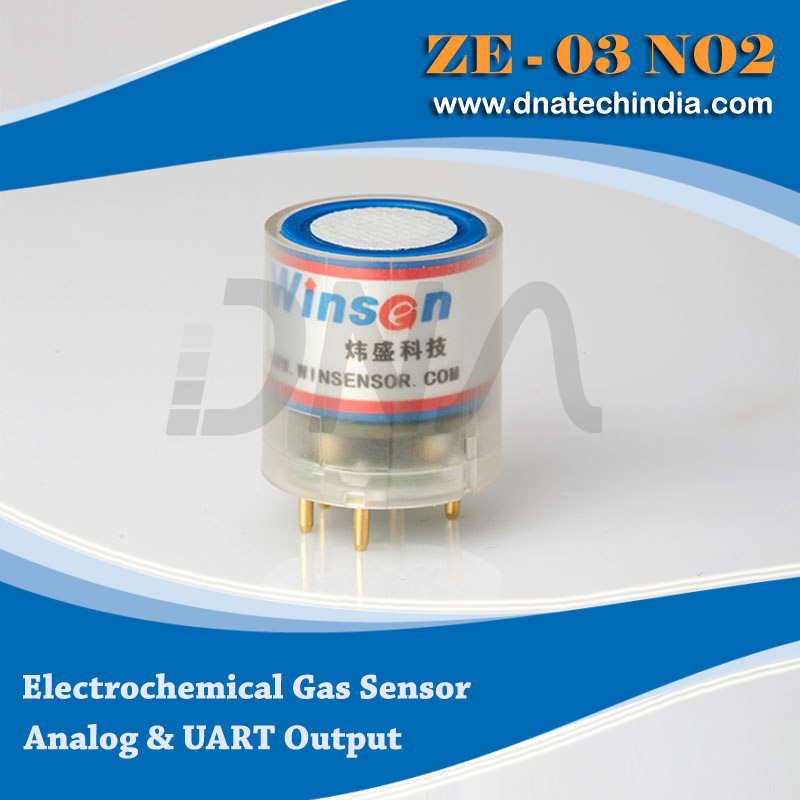

Winsen ZE03-NO2 GAS Sensor Module

Name: Winsen ZE03-NO2 GAS Sensor Module
Brand: Winsen
SKU: DAB099
Price: 12508 INR
Availability: InStock
Rating: 4 (1 reviews)

Write a review | 1 reviews

Stock: 2
Availability: InStock priceValidUntil: 2026-11-13
Brand: Winsen
SKU: 1763 | DAB099

Rs. 12,508.00 (inc GST)
Rs.10,600.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

Winsen ZE03-NO2 GAS Sensor Module

Electrochemical Detection Module ZE03-NO2

ZE03-O2 Gas sensor can be used to measure Nitrogen dioxide in atmosphere. This is an Industrial grade sensor and is are very easy to interface to your Micro-controller, Arduino as well as Raspberry Pi as they have linear Analog output as well as UART output (3 volts).

ZE03 Series of Gas Sensor Modules by Winsen is a general-purpose and high-performance electrochemical module. It uses three electrodes, electro-chemical gas sensor and high-performance micro-processor. By using this GAS Sensor you will be able to Monitor concentration of Nitrogen Dioxide gas.

It is with built-in temperature sensor to make temperature compensation, which makes more accurate to detect Nitrogen dioxide gas concentration. It has the digital output as well as analog voltage output at the same time which facilities the usage and calibration and shortens the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers different detection needs.

Features Of ZE03-NO2 GAS Detection Module

High sensitivity & resolution
Low power consumption
UART and analog voltage output
Good stability and excellent anti-interference ability

Application Of ZE03-NO2 GAS Detection Module

Portable and fixed gas detector, various gas detection equipment and situation.

Technical Parameters of ZE03-NO2 Nitrogen dioxide GAS Sensor Module

Model No : ZE03
Target Gas : NO2
Working Voltage : DC 4 Volts to 9 Volts
Working Current : < 5 mA
Size : ø23.5 mm x 24.5 mm
Working Life : 2 year
Output Data : UART Output (TTL electrical level, 3 Volts) and Analog Voltage
Storage Environment Temp. : 20~25°C
Storage Environment Humidity. : 30%RH-70%RH
Operating Environment Temp. : -20~50°C
Operating Environment Humidity. : 15%RH-90%RH (no condensation)

Detection range and signal output

Detection range : 0-20 ppm
Voltage output : 2-0 Volts
Response Time : ≤25s

Pin definition Of Electrochemical Detection Module ZE03-NO2

GND : Ground
VCC : Power supply (4 volt to 9 volts)
VO : Analog output Voltage
RXD : Serial Port Input (3 volts)
TXD : Serial port output (3 volts)
