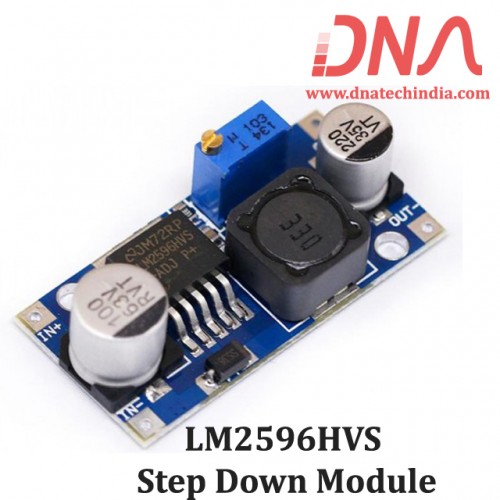

• LM2596HVS Step Down Module

Product Images are shown for illustrative purposes only and may differ from actual product.

LM2596HVS Step Down Module

  • Stock: 57
  • SKU: 2012 | DAB377
  • Rs. 87.56 (inc GST)
    Rs.74.20 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LM2596HVS DC-DC Adjustable Buck Converter

LM2596HV High Voltage DC to DC Buck (step down) converter Module with 4.5 to 50 volts input range

LM2596HV module is a high input voltage version of LM2596 Module. The LM2596HV module is a DC to DC converter buck converter module with input voltage range of 4.5 volts to 50 volts and output of 3 volts to 40 volts. This output is variable and can be varied using the onboard multi-turn potentiometer.

We have Various sizes of DC to DC Converter Modules. Check out our complete collection of DC to DC Converter Modules.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications of LM2596HV DC-DC Step Down Module

  • Input voltage : 4.5-50 Volts
  • Minimum pressure : 1.5 Volts
  • Load regulation : ± 1%
  • Output Power : 15 Watt maximum
  • Voltage Regulation : ± 0.5%
  • Output current : rated current 2 Amper, 3 Amper maximum
  • Input : IN+ input positive IN- input negative
  • Output : OUT+ output positive OUT- output negative
  • Static power consumption is only about 6mA.
  • Conversion efficiency : up to 92% (output voltage, the higher the efficiency)
  • Output voltage : (3 - 35 Volts) continuously adjustable (recommended load debugging).
  • Short circuit protection : current limiting, thermal protection, self-recovery.
  • Operating temperature : Industrial grade (-40 to + 85 degrees Celsius)
  • Adjustment method : first correct input power (between 4.5-50 Volts) then multimeter to monitor the output voltage and adjust potentiometer (usually clockwise turn boost, buck turn counterclockwise),
  • Connection : Welding, plus pin can be directly soldered after the PCB.

Features Of LM2596HV DC-DC Buck Converter Module

  • High efficiency up to 92%.
  • 4.5 Volt - 50 Volt adjustable input voltage range.
  • 3 volt - 40 Volts adjustable output voltage range.
  • With over-current and over-temperature protection, safe for use.
  • Fine workmanship, long life span.
  • Can set the float voltage and charging current.
  • Special design enhanced heating radiating.
