Product Images are shown for illustrative purposes only and may differ from actual product.

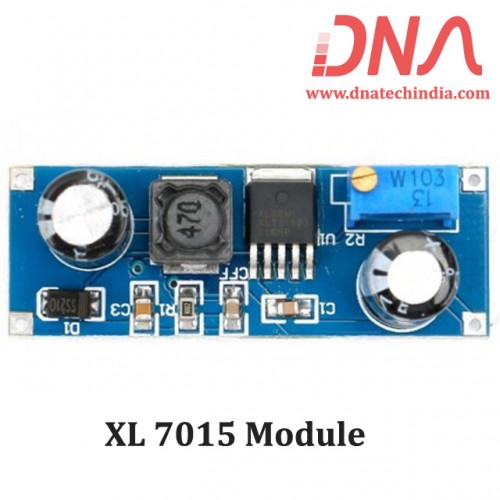

XL 7015 Module

  • Stock: 100
  • SKU: 1716 | DAB421
  • Rs. 67.26 (inc GST)
    Rs.57.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

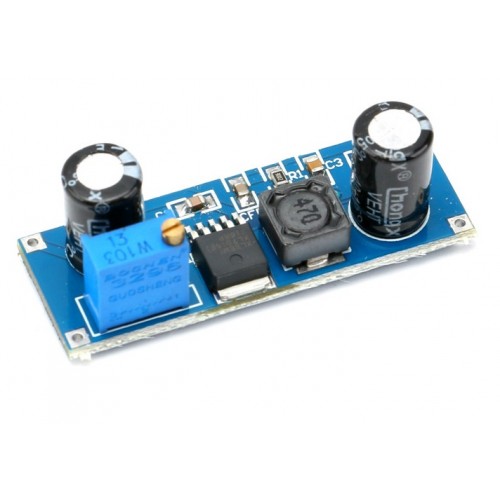

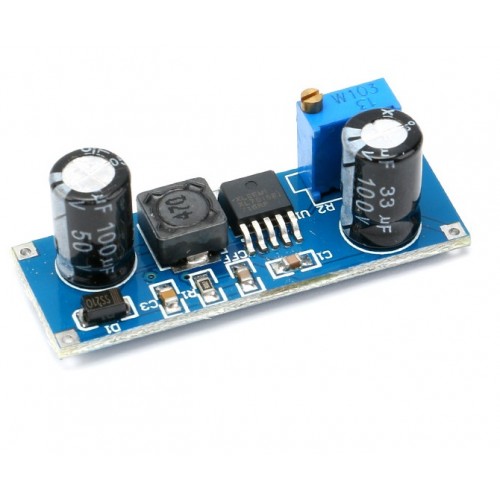

XL7015 Step Down Module

XL7015 DC-DC Converter Step-down Module 5 Volt  to 80 Volt Wide Voltage Input
XL7015 DC - DC buck type module is A highly efficient, high pressure step-down DC - DC converter, provides the highest 0.8 A output current capability, low ripple, excellent linear regulation and load regulation, up to A maximum of 80 volts input voltage, more than 2596 modules, etc. Chip built-in various protection mechanisms. Can be applied to electric vehicle controller, etc.

We have Various sizes of DC to DC Converter Modules. Check out our complete collection of DC to DC Converter Modules.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications of XL 7015 DC-DC Converter Module

  • 5 volt to 80 volt input voltage range wide
  • The output voltage from 5 volts to 20 volts adjustable
  • The minimum pressure drop 1 volts
  • 0.8 Ampere biggest switch current
  • Recommend the output power is less than 7 watt
  • Shut off built-in overheating protection, output short circuit protection, over current protection
  • Good linear with load regulation

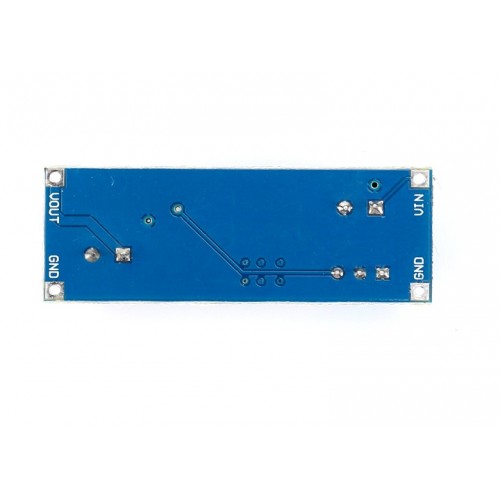

Wiring instructions of XL 7015 Step Down Module

  • VIN: input voltage (5 volts - 80 volts)
  • The GND: input voltage side
  • The VOUT: output voltage (5 volts - 20 volts)
  • The GND: output voltage to end
