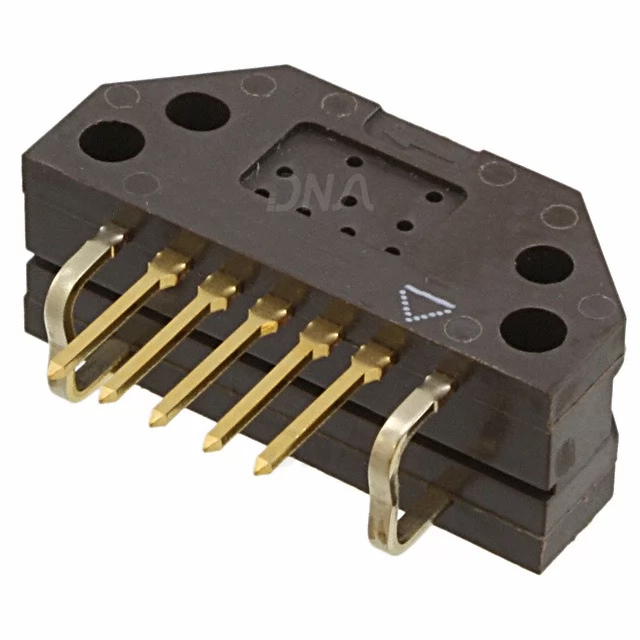

HEDS9000 Two Channel Optical Incremental Encoder Modules
- Stock: 1
- Brand: Generic
- SKU: 7445 | DAF847
-
Rs. 3,009.00 (inc GST)
Rs.2,550.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
HEDS9000 Two Channel Optical Incremental Encoder Modules
HEDS9000 Two Channel Optical Incremental Encoder Modules
The HEDS-9000 series are high performance, low cost, optical incremental encoder modules. When used with a code wheel, these modules detect rotary position. The modules consist of a lensed (LED) source and a detector IC enclosed in a small C-shaped plastic package. Due to a highly collimated light source and unique photodetector array, these modules are extremely tolerant to mounting misalignment. The two channel digital outputs and the single 5 V supply input are accessed through five 0.025 inch square pins located on 0.1 inch centers.
DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of HEDS9000 Two Channel Optical Incremental Encoder Modules
- High performance
- High resolution
- Low cost
- Easy to mount
- No signal adjustment required
- Small size
- -40°C to 100 °C operating temperature
- Two channel quadrature output
- TTL compatible
- Single 5 V supply
Specifications of HEDS9000 Two Channel Optical Incremental Encoder Modules
- Type: Two-channel optical incremental encoder
- Channels: A and B quadrature outputs
- Resolution Options: 500, 512, 1000, or 1024 counts per revolution (CPR), depending on the chosen codewheel
- Mounting Option: T-11 mounting base for precise positioning
- Output Type: TTL compatible digital signals (square wave)
Package Includes
- 1 x HEDS9000 Two Channel Optical Incremental Encoder Modules
