L9110S Motor Driver Module
- Stock: 2
- SKU: 1715 | DAB062
-
Rs. 107.38 (inc GST)
Rs.91.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

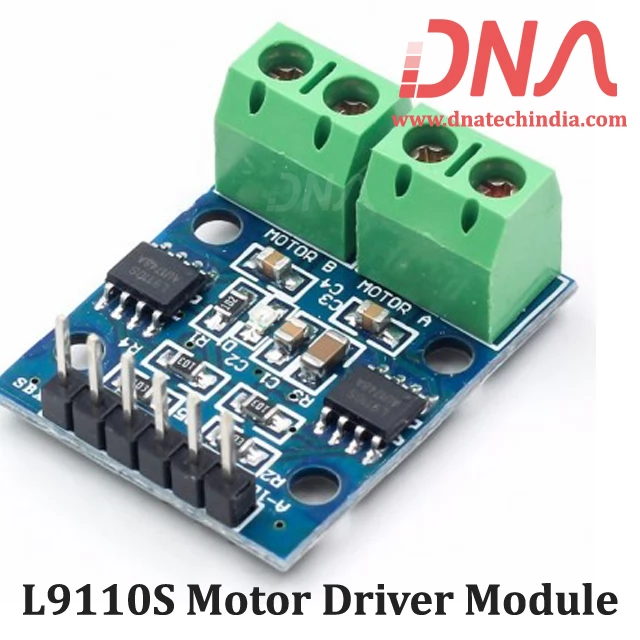

L9110S Motor Driver Module
HG7881 - L9110S Module
The L9110S 2-Channel motor driver module is a compact board that can be used to drive small robots. This module is based on L9110 Motor Driver IC. This module has two independent motor driver chips which can each drive up 800mA of continuous current. The boards can be operated from 2.5 volt to 12 Volt enabling this module to be used with both 3.3 Volts and 5 Volts microcontrollers. A set of female header pins is used to connect this module to a micro controller. The motors are attached via two sets of screw terminals.
A PWM Pulse Width Modulation signal is used to control the speed of a motor and a digital output is used to change its direction. This module can also be used to drive a single four line two phase stepper motor. Four holes make this board easy to mount onto your robot or other project.
We have Various sizes of Motor Driver Modules. Check out our complete collection of Motor Driver Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Specifications of HG7881- L9110S Module
- On-board two L9110 motor control chip
- Module can be driven by two dc motors at the same time or one phase 4 line 2 type stepping motor
- Input voltage : 2.5 to 12 Volt DC
- Each channel has a continuous output current 800 ma
- PCB Size : 29.2 mm x 23 mm
- On-board two L9110 motor control chip
- Module can be driven by two dc motors at the same time or one phase 4 line 2 type stepping motor
- Input voltage : 2.5 to 12 Volt DC
- Each channel has a continuous output current 800 ma
- PCB Size : 29.2 mm x 23 mm
