  • 8-Channel 5 Volt Isolated Relay Module

Product Images are shown for illustrative purposes only and may differ from actual product.

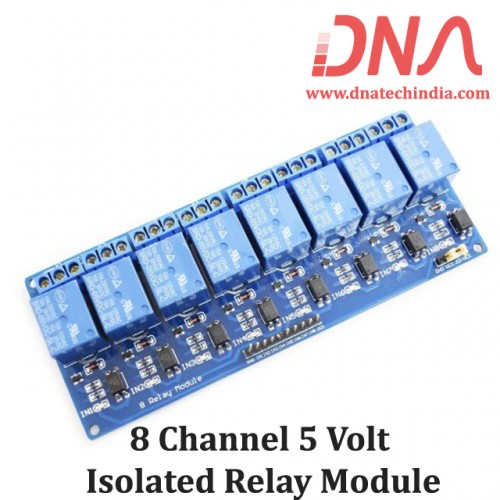

8-Channel 5 Volt Isolated Relay Module

  • Product Code: 1305
  • Availability: 1
  • Price :

    Rs.355.18 (inc GST)

    Qty :

  • Quantity Pricing (inc GST)

    3 + 348.08 7 + 340.97 10 + 333.87 20 + 326.77

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

8-Channel 5 Volt Isolated Relay Module

These are optically isolated relay modules having 5 Volt cube Relays. The relays are driven by a Opto-coupler which provides isolation between your Micro-controller, Arduino or Raspberry Pi & the relay thus making this module better that the modules having transistor or ULN2003 IC as drivers.

This is a Eight channel Relay Module with output relay contacts of 10 ampere at 250 volts.  You can use it easily with any Micro-controller, Arduino or Single Board Computers (SBC) like Raspberry Pi and Beagle bone. You can even use this module with digital IC's like LM555 of HT12D.

Features of 8 channel 5 volt Relay Board

  • This relay module is 5V active low.
  • It is an 8-channel relay interface board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.
  • It is also able to control various appliances and other equipments with large current.
  • Relay output maximum contact is AC250V 10A and DC30V 10A.
  • Standard interface can be directly connected with microcontrollers.
  • Red working status indicator lights are conducive to the safe use.
  • Widely used for all MCU control, industrial sector, PLC control, smart home control.
  • Input port IN1, IN2, IN3, IN4, IN5, IN6, IN7, IN8 low signal level effectively.
  • VCC, GND: Input power.
  • JD - VCC: Relay power input port,relay can power alone.
  • Working voltage: 5V
  • Module weight: about 112g
  • package weight: about 150g
  • module size: about 1.7cm X 5.5cm X 13.7cm(height * width * long)


Applications of Relay Board

  • Support all single-chip microcomputer control.
  • Industrial fields;
  • PLC control;
  • Household intelligent control
