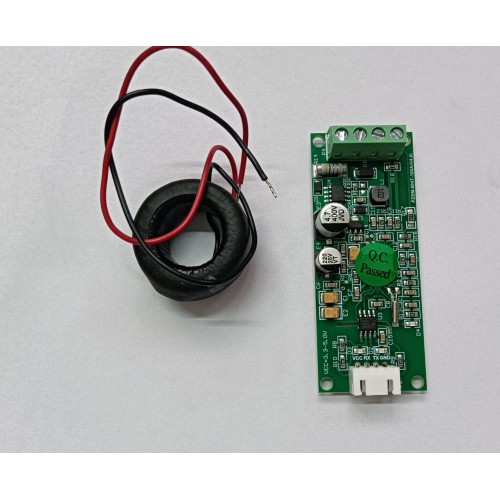

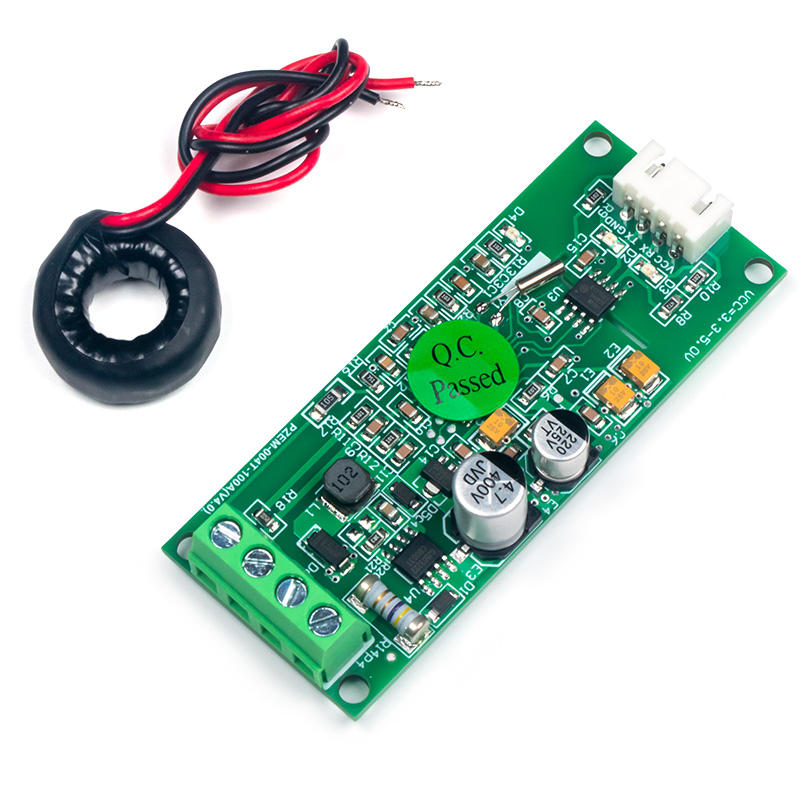

Peacefair PZEM-004T AC Multi function Electric Energy Metering Power Monitor

Peacefair PZEM-004T AC Multi function Electric Energy Metering Power Monitor

This Peacefair PZEM-004T Multi-function AC Power Monitor is very popular in electrical consumption measurement projects. It is capable of measuring four interrelated electrical variables as voltage, current, power, and energy.  This tiny PZEM-004T circuit is great for measuring AC (RMS) voltage, current, and power (single-phase). The unit easily interfaces with Arduino and other hardware using the code library.

DNA solutions, Nashik has various types of Modules. Check out our complete collection of Modules.

• Electrical parameter measurement function (voltage, current, active power, power)

• The power button clear function

• Power-down data storage function (cumulative power down before saving)

• PC PC display function (display voltage, current, active power, power)

• The serial communication function (comes with TTL serial interface, through various terminals to communicate with the adapter plate, read, and set the parameters)

Specifications of Peacefair PZEM 004T AC Multi function Electric Energy Metering Power Monitor

• Accuracy: 1

• Operating Voltage (VDC): 80-260V (AC)

• Test voltage: 80-260V (AC)

• Max. Operating Current (mA): 100A

• Power Rating (W): 100A/22KW

• Frequency (Hz): 45-65Hz

Applications of Peacefair PZEM 004T AC Multi function Electric Energy Metering Power Monitor

• Residential Power Monitoring

• Industrial and Commercial Monitoring

• Renewable Energy Systems

• Power Quality Monitoring

• Battery-Powered or Off-Grid Systems

Package Includes

      1 x Peacefair PZEM 004T AC Multi function Electric Energy Metering Power Monitor
