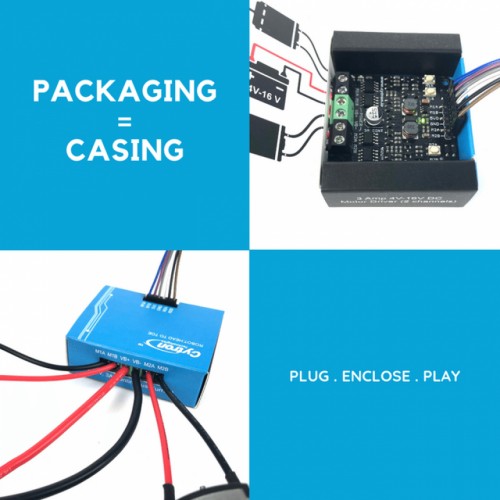

-PACKING-500x500.JPG "Cytron 3Amp 4V-16V Dual Channel DC Motor Driver MDD3A")

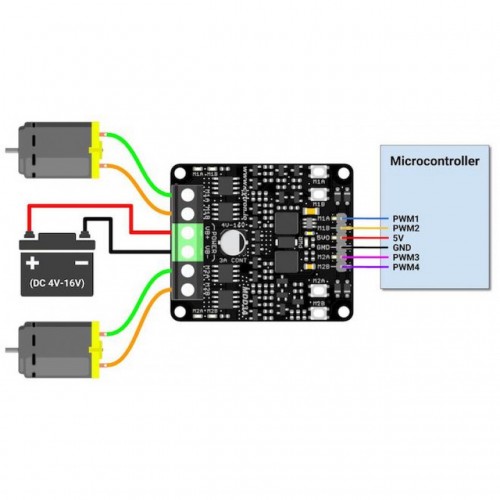

-INDIA-500x500.jpg "Cytron 3Amp 4V-16V Dual Channel DC Motor Driver MDD3A")
Product Images are shown for illustrative purposes only and may differ from actual product.

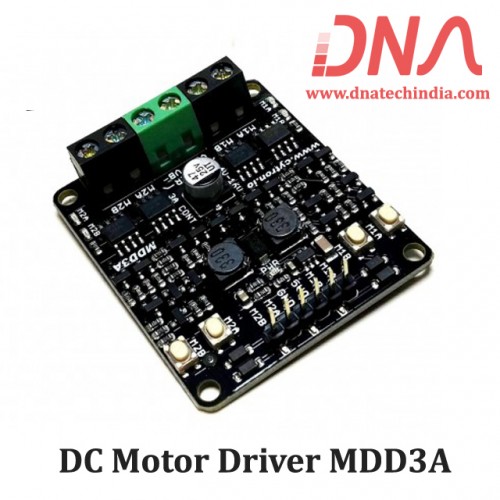

Cytron 3Amp 4V-16V Dual Channel DC Motor Driver MDD3A
-
Rs.
615.09 (inc GST)
Rs.521.26 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |
Cytron 3Amp 4V-16V Dual Channel DC Motor Driver MDD3A
3Amp 4V-16V DC Motor Driver (2 Channels)
MDD3A is able to control two brushed DC motors or single bipolar/unipolar stepper motor from 4V to 16V. With discrete MOSFETs H-Bridge design, this motor driver is able to support 3 Amp per channel continuously without any additional heatsink.
The on board test buttons and motor output LEDs allow functional test of the motor driver in a quick and convenient way without hooking up the host controller. Buck-boost regulator which produces 5V output from input as low as 4V can be used to power the host controller.
MDD3A can be controlled with wide input logic voltage range from 1.8V to 12V, it’s compatible with wide variety of host controller (e.g. Arduino, Raspberry Pi, PLC).
The on board test buttons and motor output LEDs allow functional test of the motor driver in a quick and convenient way without hooking up the host controller. Buck-boost regulator which produces 5V output from input as low as 4V can be used to power the host controller.
MDD3A can be controlled with wide input logic voltage range from 1.8V to 12V, it’s compatible with wide variety of host controller (e.g. Arduino, Raspberry Pi, PLC).
To prevent the motor driver from damaged by reverse voltage if the battery is connected in wrong polarity, it is equiped with reverse polarity protection. This is a very common mistake done by a lot of makers even for the very experienced one.
To prevent the motor driver from damaged by reverse voltage if the battery is connected in wrong polarity, it is equiped with reverse polarity protection. This is a very common mistake done by a lot of makers even for the very experienced one.
We have Various sizes of Cytron. Check out our complete collection of Cytron.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features:
- Bidirectional control for two brushed DC motor.
- Control one unipolar/bipolar stepper motor.
- Operating Voltage : DC 4V to 16V
- Maximum Motor Current : 3A continuous, 5A peak
- Buck-boost regulator to produce 5V output (200mA max).
- Buttons for quick testing.
- LEDs for motor output state.
- Inputs compatible with 1.8V, 3.3V, 5V and 12V logic (Arduino, Raspberry Pi, PLC, etc).
- PWM frequency up to 20kHz (Output frequency is same as input frequency).
- Reverse polarity protection
Application:
- Small size mobile robot for competition or school projects.
Packing List:
- 1 x 3Amp 4V-16V DC Motor Driver (2 Channels)
Related Documents:
