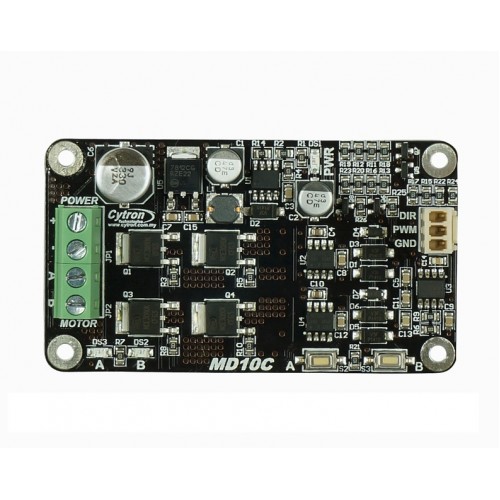

-MD10C12-500x500.jpg "Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds) MD10C")
Product Images are shown for illustrative purposes only and may differ from actual product.

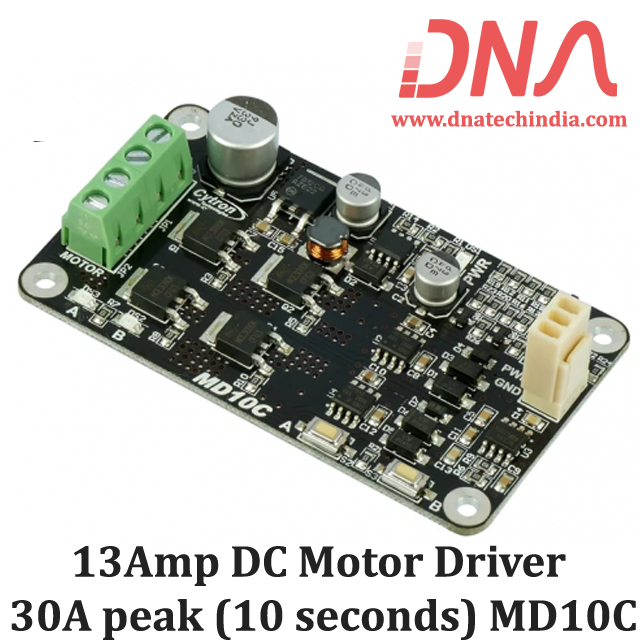

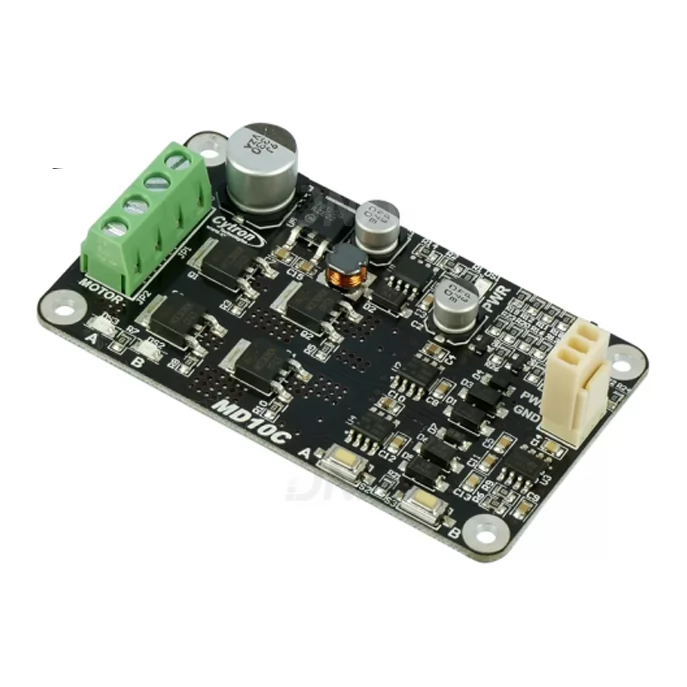

Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds) MD10C
-
Rs. 1,280.30 (inc GST)
Rs.1,085.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds) MD10C
Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds) MD10C
This is Cytron Enhanced 13Amp DC Motor Driver 30A peak (10 seconds) MD10C. The MD10C is a newer version of the MD10B which is designed to drive high current brushed DC motor up to 10A 13A continuously.It offers several enhancements over the MD10B such as support for both locked-antiphase and sign-magnitude PWM signal as well as using full solid state components which result in faster response time and eliminate the wear and tear of the mechanical relay.
We have Various sizes of Cytron. Check out our complete collection of Cytron.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features:
- Bi-directional control of 1 brushed DC motor.
- Support motor voltage ranges from 5V to 25V.
- Maximum current up to 13A continuous and 30A peak (10 seconds).
- 3.3V and 5V logic level input.
- Solid state components provide faster response time and eliminate the wear and tear of the mechanical relay.
- Fully NMOS H-Bridge for better efficiency and no heat sink is required.
- Speed control PWM frequency up to 20KHz (Actual output frequency is the same as input frequency).
- Support both locked-antiphase and sign-magnitude PWM operation.
- The new MD10C can be powered from a single power source and external Vin is not required.
Specification
- Driver Model : MD10C
- Operating Voltage(VDC) : 5 to 25 (Rev 1.0) , 5 to 30 (Rev 2.0 )
- Arduino Sheild : No- can be used with Wire connection
- Battery Protection Mode : Yes
- Peak Current (A) : 30 (10 seconds)
- Continuous Current (A) : 13
- PWM (Lock-Antiphase and Sign-Magnitude) : Yes
- UART : No
- Analog : No
- RC Servo Signal : No
- LED Indicator : Yes
- No. of Channels : 1
- Cooling Fan : No
- Test/Manual Button : Yes
- Polarity Protection : No
- Dimensions in mm (LxWxH) : 75 x 43 x 20
- Weight : 80gram
Package includes:
- 1 x Cytron Enhanced 13Amp DC Motor Driver 30A peak MD10C
