Cytron 10 A Switch Control Potentiometer DC Motor Driver (MD10POT)

  • Stock: Out Of Stock
  • Brand: Cytron
  • SKU: 2259 | DAB945
  • Rs. 854.77 (inc GST)
    Rs.724.38 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

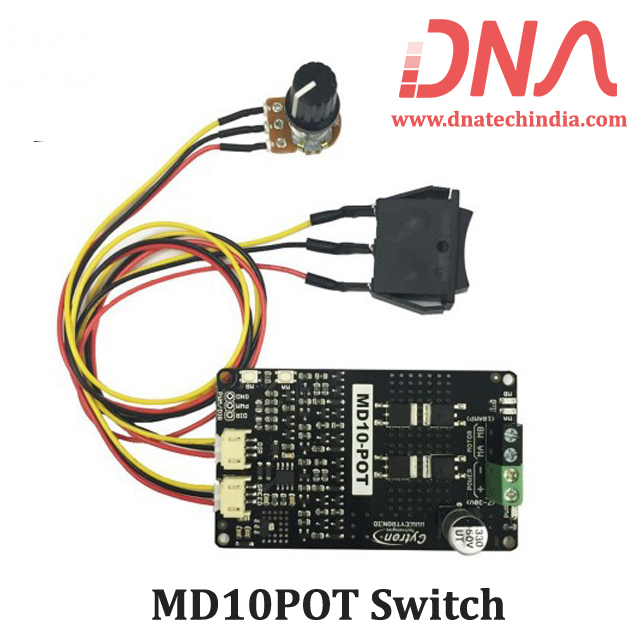

Cytron 10 A Switch Control Potentiometer DC Motor Driver (MD10POT)

10 Ampere 7 to 30 Volt Potentiometer & Switch Control DC Motor Driver.

MD10-POT is a motor driver or speed controller from Cytron that enables you to easily control a motor's run/brake, direction and speed. Microcontroller is not needed in a complete setup, hence programming is not required too. A DC brushed motor can be controlled directly using the Switch (Activation & Direction) and Potentiometer (Speed) which is included in the package.

We have Various sizes of Cytron. Check out our complete collection of Cytron.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MB10 Motor Driver

  • Bidirectional control for one brushed DC motor.
  • Control motor run/brake and direction with a 3-way rocker switch (included in package).
  • Control motor rotation speed with a potentiometer (included in package).
  • Operating Voltage: DC 7 to 30 Volts
  • Maximum Motor Current: 10 Ampere continuous, 30 Ampere peak
  • Buttons for quick testing.
  • LEDs for motor output state.
  • PWM and DIR inputs.
  • Compatible with sign-magnitude and locked-antiphase PWM operation.
  • Regenerative Braking.
  • No reverse polarity protection.
  • Dimension: 81.28mm x 48.26mm

Packing List:

  • 1 x MD10-POT
  • 1 x 10kOhm Potentiometer with connector
  • 1 x 3-Way Rocker Switch with connector
  • 1 x Quick Start Guide Card

Documents:

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
