Product Images are shown for illustrative purposes only and may differ from actual product.

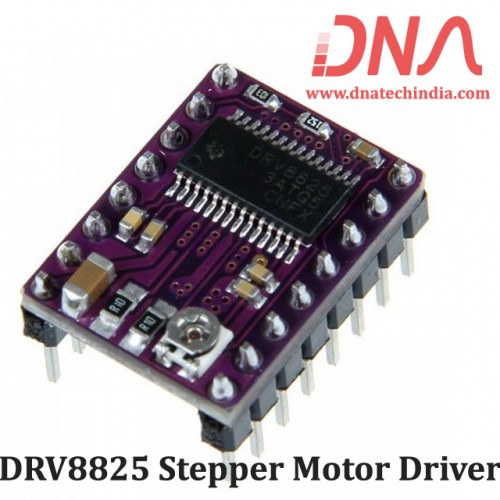

DRV8825 Stepper Motor Driver
- Stock: 3
- SKU: 1220 | DAA724
-
Rs. 168.74 (inc GST)
Rs.143.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

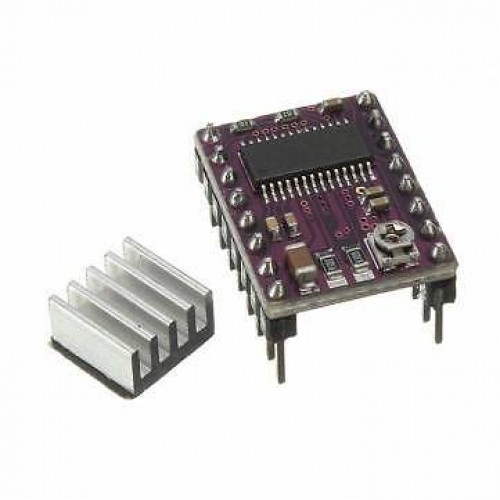

DRV8825 Stepper Motor Driver
The DRV8825 features adjustable current limiting, over-current and over-temperature protection, and six microstep resolutions (down to 1/32-step).
Want to controller stepper Motor from Arduino, Raspberry Pi or any other Micro-controller? Well then this stepper motor driver will simplify your coding and will give you more flexibility in controlling the stepper motor.
Note : Not all stepper motors can be controlled by DRV8825 Stepper Driver.
It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
This product is a carrier board or breakout board for TI’s DRV8825 stepper motor driver; we therefore recommend careful reading of the DRV8825 datasheet before using this product. This stepper motor driver lets you control one bipolar stepper motor at up to 2.2 A output current per coil.
We have Various sizes of Motor Driver Modules. Check out our complete collection of Motor Driver Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of DRV8825
- Simple step and direction control interface
- Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
- Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
- Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
- 45 V maximum supply voltage
- Built-in regulator (no external logic voltage supply needed)
- Can interface directly with 3.3 V and 5 V systems
- Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout
- Short-to-ground and shorted-load protection
- 4-layer, 2 oz copper PCB for improved heat dissipation
- Exposed solderable ground pad below the driver IC on the bottom of the PCB
