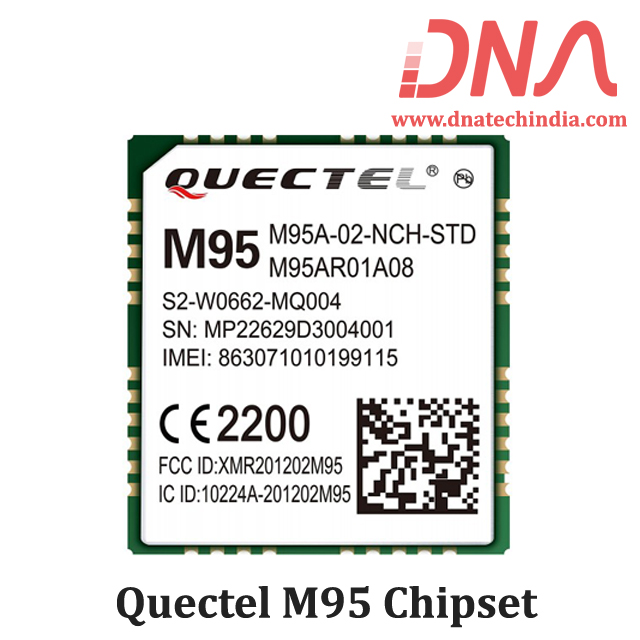

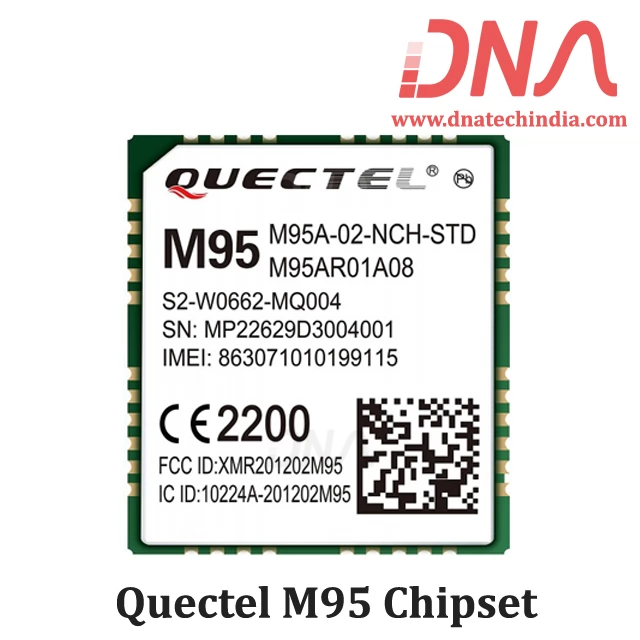

Quectel M95 Chipset

Quectel M95 GSM/GPRS Module

Built-in unique QuecFOTATM technology allows M95 to update the firmware remotely.

Looking for rugged good quality and low powered GSM & GPRS chipset?  Look no further Quectel's M95 GSM Module is one of the best that we have seen in Indian market. The best GSM based products manufacturers manufacturing products like GSM Pump starters, Remote GSM device control systems or GSM monitoring systems in India use Quectel Modules.

Procurement of small quantities of M95 Module was a big issue. Even we at DNA Technology had developed GSM based products based on Simcom modules because M95 module was not easily available in Market. Well that is now the past you can now even buy one module from our store and develop your product. We will support you for small as well as bulk quantity of M95 GSM Module.

M95 is one of the smallest Quad-band GSM/GPRS modules in LCC castellation packaging with the compact size of 19.9 × 23.6 × 2.65mm, ultra low power consumption and extended temperature range.

With surface mounted technology, the low profile and small size of LCC package makes M95 easily embedded into the low-volume applications and ensures the reliable connectivity with the applications. This kind of package is ideally suited for large-scale manufacturing which has the strict requirements for cost and efficiency.

Additional features such as integrated TCP/IP protocol stack, serial multiplexer and enhanced AT commands guarantee fast and reliable transmission of data, voice, SMS via GSM/GPRS network and extend the functionality of the application without adding cost.

Its tiny size and ultra low power consumption makes M95 a very cost effective and feature-rich platform that is quite suitable for a wide range of M2M applications such as VTS, Industry PDA, Personal Tracking, Wireless POS, Smart Metering and many other M2M applications.

We have Various sizes of GPS-GSM Module. Check out our complete collection of GPS-GSM Module.

Key Benefits of M95 GSM Module

• One of the smallest Quad-band GSM/ GPRS modules

• Easier soldering process with LCC package

• Embedded Class-AB amplifier

• Power consumption as low as 1.3mA

• Embedded powerful Internet service protocols, multiple Sockets & IP addresses

• eCall / ERA-GLONASS (Supported in specific firmware)

• QuecFOTATM

• Jamming detection

• DTMF

Related Documents

• Datasheet, Hardware Design
