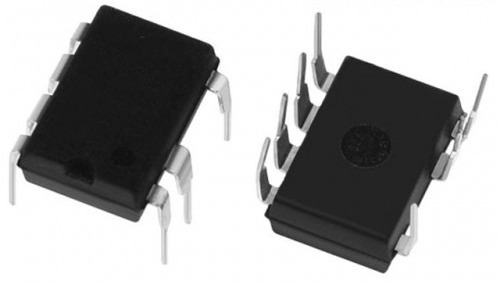

NCP1075AAP065G AC/DC Flyback Converter DIP IC

NCP1075AAP065G AC/DC Flyback Converter DIP IC

The NCP1075AAP065G AC/DC Flyback Converter DIP IC products integrate a fixed frequency current mode controller with a 700 V MOSFET. Available in a two different pin−out of the very common PDIP−7 package, the NCP107xuz offers a high level of integration, including soft−start, frequency−jittering, short−circuit protection, skip−cycle, a maximum peak current set−point, ramp compensation, and a dynamic self−supply (DSS, eliminating the need for an auxiliary winding).This also allows an Over−power. Protection to compensate all internal delays in high input voltage conditions and optimize the maximum output current capability.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• Large Creepage Distance Between High Voltage Pins


• Current−mode Fixed Frequency Operation – 65 / 100 / 130 kHz


• Various Options for Maximum Peak Current: see below table


• Auto−recovery Output Short−circuit Protection with Timer−based Detection


• Auto−recovery Over−voltage Protection with Auxiliary Winding Operation


• Frequency Foldback to Improve Efficiency at Light Load


Applications of NCP1075AAP065G AC/DC Flyback Converter DIP IC

• Auxiliary / Standby Isolated Power Supplies


• Major Home Appliances Power Supplies


• Power Meter SMPS


• Wide Input Industrial SMPS


Package Includes

• 1 x NCP1075AAP065G AC/DC Flyback Converter DIP IC
