• Nextion Enhanced NX8048K070 7" TouchScreen Display

Product Images are shown for illustrative purposes only and may differ from actual product.

Nextion Enhanced NX8048K070 7" TouchScreen Display

  • Stock: Out Of Stock
  • Brand: ITead
  • SKU: 1653 | DAB493
  • Rs. 9,729.01 (inc GST)
    Rs.8,244.92 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

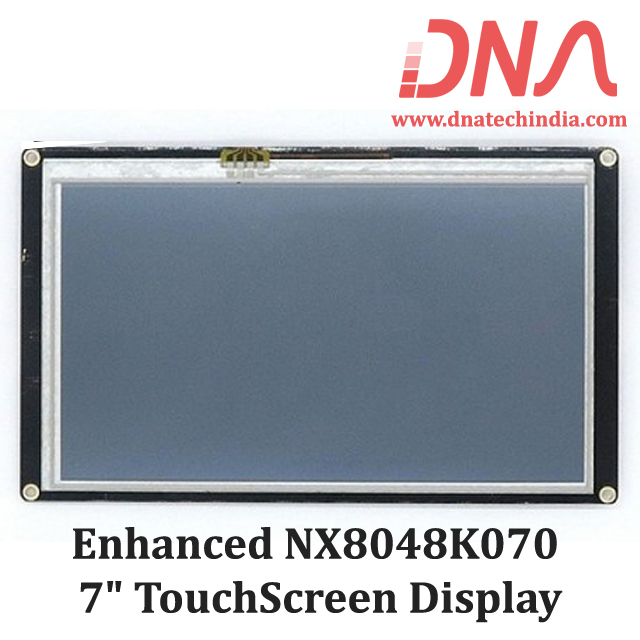

Nextion NX8048K070 Enhanced 7 inch HMI Touch Display

Nextion 7 inch Enhanced Resistive Touch with TFT Display

The Nextion Enhanced versions are more powerful than the standard ones. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash capacity and larger CPU clock. The enhanced Nextion series has 7 size covers from generic 2.4'' to 7.0''.

Nextion Enhanced NX8048K070 is a powerful 7.0'' HMI TFT display, with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM. With GPIO supported, now customers can use Nextion to control external devices.

Nextion is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to Internet of thing (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It's easy to adapt Nextion family HMI to existing projects- users just need to provide it a UART.
DNA Technology is official distributor for Nextion Display in IndiaCheck out various Nextion displays that we have in stock.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of Nextion Enhanced 7.0" Display

  • Supports built-in RTC
  • Supports GPIO
  • SD Card interface : support max 32G Micro TF/SD card (FAT32 file format)
  • Flash data storage space : 32MB
  • EEPROM : 1024 bytes
  • RAM : 8192 bytes
  • Instruction buffer : 1024 bytes
  • Color : 65K (65536) colors
  • Resolution : 800×480 pixel
  • Adjustable Brightness : 0~230 nit- the interval of adjustment is 1%

Specification of Nextion 7 inch Enhanced Touch Display

  • Visual Area : 154.08mm(L)×85.92mm(W)
  • Layout size : 181(L)×108(W)×9.3(H)
  • Touch type : Resistive
  • Backlight : LED
  • Backlight lifetime (Average) : >30,000 Hours
  • Net Weight : 268 g
  • Recommended power supply : 5V 2A
  • Certificates : CE/EMC, RoHS

Package includes

  • 1× 7.0" Nextion Enhanced HMI Display
  • 1× power supply test board
  • 1× 4-pin grove cable

Reference Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
