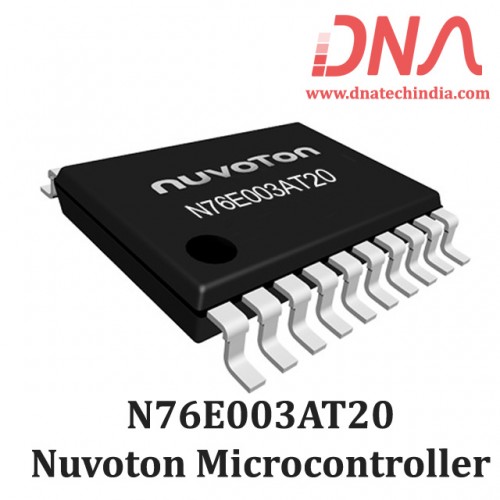

Nuvoton N76E003AT20 SMD Microcontroller

Nuvoton N76E003AT20 a 1T-8051 based series SMD microcontroller

Nuvoton's N76E003AT20 – a 1T-8051 based series MCU, offers 18 KB Flash ROM, configurable Data Flash and 1 KB SRAM . It supports wide operating voltage of 2.4V to 5.5V , temperature range of - 40 ℃ to 105 ℃ , and high noise immunity of 7 kV ESD and 4 kV EFT.

The N76E003AT20 microcontroller provides up to 18 I/O pins under 20 pin package and rich peripherals including two UART s, SPI , I²C , 6-ch PWM output, wake-up function, and Brown-out detector. The competitive features includes a high precision <2 % deviation 16 MHz Internal RC oscillator, and a high resolution 12-bit 8 channel ADC . Nuvoton's N76E003AT20 controller supports small form factor packages TSSOP20 ( 4mm x 6.5mm ) and QFN20 ( 3mm x 3mm ) for easy board design.

DNA Solution has various types of Nuvoton Micorocntrollers in stock. Check our complete collection of Nuvoton Microcontrollers

Key Features of Nuvoton N76E003AT20 Microcontroller

• Core

  - 1T 8051 processor

  - Max frequency up to16 MHz

  - Wide operating voltage: 2.4V to 5.5V

  - Temperature range: - 40 ℃ to 105 ℃

• Memory

  - 18 KB  of Flash memory

  - 1 KB of SRAM

  - Supports configurable Data Flash

  - Supports program update by:

ISP ( In-System Programming )

ICP ( In-Circuit Programming )

IAP ( In-Application Programming )

• PWM

  - Up to 6-ch PWM

  - Programmable dead-zone generator

• ADC

  - 12-bit 8-ch ADC

  - Runs up to 500 kSPS

• Connectivity

  - Two UART s up to 115200 bps

  - One SPI up to 8 MHz

  - One I²C up to 400 kHz

• Clock Control

  - 2 % deviation16 MHz Internal RC oscillator

  - 10 kHz Internal RC oscillator
