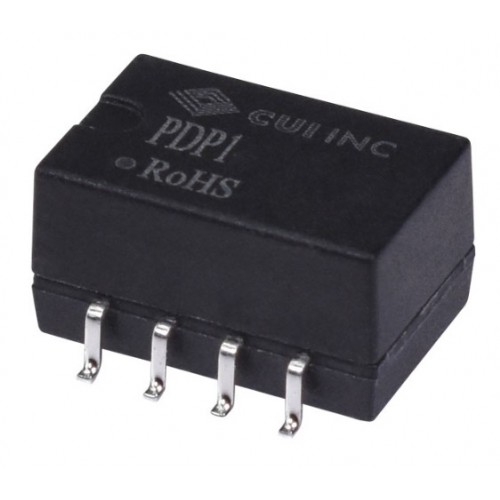

  • PDP1-S5-S5-M ( Isolated Surface Mount DC/DC Converter )

Product Images are shown for illustrative purposes only and may differ from actual product.

PDP1-S5-S5-M ( Isolated Surface Mount DC/DC Converter )


Write a review | 0 reviews

  • Stock: 2
  • SKU: 8027 | DAH207
  • Rs. 571.03 (inc GST)
    Rs.483.92 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

PDP1-S5-S5-M ( Isolated Surface Mount DC/DC Converter )

PDP1-S5-S5-M ( Isolated Surface Mount DC/DC Converter )

This converter accepts a 5V DC input and delivers a 5V DC output, offering 1500 VDC isolation. Its compact 8-pin SMT package measures 13.2mm x 11.4mm x 7.25mm, making it suitable for space-constrained applications.

DNA solutions, Nashik has various types of DC DC Converters. Check out our complete collection of  DC DC Converters.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of PDP1-S5-S5-M ( Isolated Surface Mount DC/DC Converter )

  • 1W isolated output
  • 1500 VDC isolation
  • Compact SMD package
  • Continuous short circuit protection
  • No-load input current as low as 5mA
  • Wide operating temperature range: -40°C to +105°C
  • High efficiency up to 83%

Specifications of PDP1-S5-S5-M ( Isolated Surface Mount DC/DC Converter )

  • Input Voltage: 4.5V to 5.5V DC
  • Output Voltage: 5V DC
  • Output Current: Up to 200mA
  • Efficiency: Typical 82%
  • Isolation Voltage: 1500 VDC
  • Operating Temperature: -40°C to +105°C

Applications of PDP1-S5-S5-M ( Isolated Surface Mount DC/DC Converter )

  • Industrial automation systems
  • Telecommunications equipment
  • Medical devices (non-patient contact)
  • Test and measurement instruments
  • Embedded systems requiring isolated power supplies

    Package Includes

          1 x PDP1-S5-S5-M ( Isolated Surface Mount DC/DC Converter )

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
