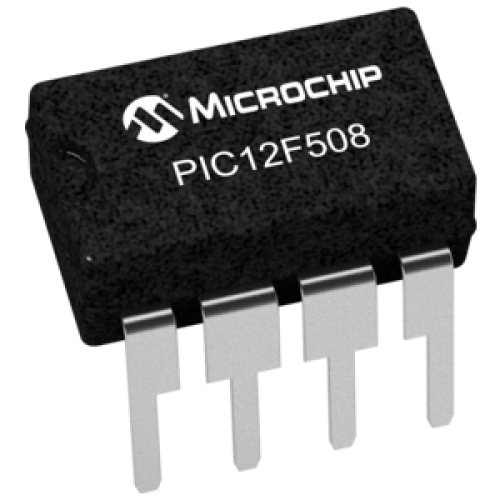

PIC12F508 Microcontroller

The PIC12F508 devices from Microchip Technology are low-cost, high-performance, 8-bit, fullystatic, Flash-based CMOS microcontrollers. They employ a RISC architecture with only 33 single-word/single-cycle instructions. All instructions are single cycle (200 µs) except for program branches, which take two cycles. The PIC12F508/509/16F505 devices deliver performance an order of magnitude higher than their competitors in the same price category. The 12-bit wide instructions are highly symmetrical, resulting in a typical 2:1 code compression over other 8-bit microcontrollers in its class. The easy-to-use and easy to remember instruction set reduces development time significantly.

Features of PIC12F508

•  Precision 4 MHz internal oscillator

•  Baseline Core with 33 Instructions, 2 Stack Levels

•  All single-cycle Instructions except for program branches which are two cycles

•  12-bit wide instructions

•  8-bit wide data path

•  25 mA source/sink current I/O

•  Low power (100nA) sleep current

•  One 8-bit timer (TMR0)

•  Watchdog timer (WDT)

•  In Circuit Serial Programming™ (ICSP™) capability

•  In-Circuit debugging support

•  Programmable code protection

•  Program Memory Type: Flash

•  Program Memory (KB): 0.75

•  CPU Speed (MIPS): 1

•  RAM Bytes: 25

•  Timers: 1 x 8-bit

•  Temperature Range (C): -40 to 125

•  Operating Voltage Range (V): 2 to 5.5

•  Pin Count: 8
