Servo Motor V3003

A servomotor is a rotary actuator or linear actuator that allows for precise control of angular or linear position, velocity and acceleration.

It consists of a suitable motor coupled to a sensor for position feedback. It also requires a relatively sophisticated controller, often a dedicated module designed specifically for use with servomotors.

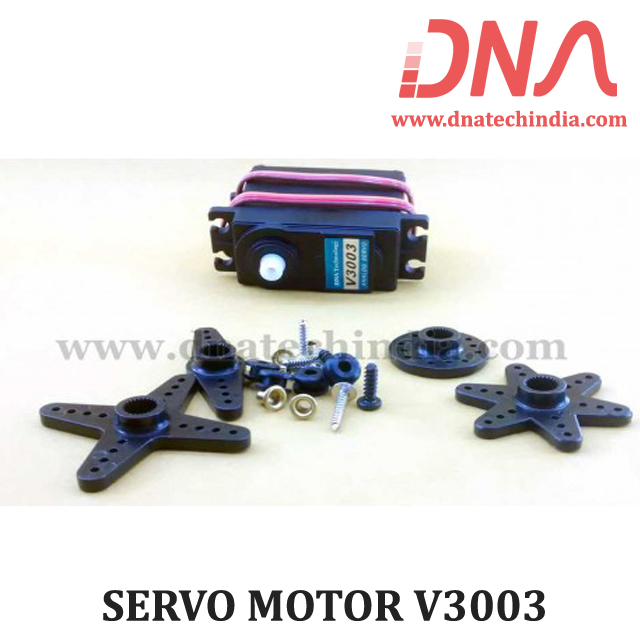

Servomotors are not a specific class of motor although the term servomotor is often used to refer to a motor suitable for use in a closed-loop control system. This is a Plastic Geared High Torque Servo Motor V3003.

Features of V3003

• Operating Voltage : 4.8- 6.0VDC

• Operating Speed : 0.20sec/60degree (4.8V),

                                            0.18sec/60degree (6.0V)

• Stall Torque : 3.0kg-cm (4.8V),

                                   3.2kg-cm (6.0V)

• Temperature Range : -20°C ~60°C

• Dead Band Width : 4ms

• Dimension : 41.3x20.3x38.7mm

• Gear : Plastic

• Type : Analog

• Weight : 41g

• Cable in Length : 25cm

Applications of Servo Motor

• Robotics,

• CNC machinery,

• Automated manufacturing.
