• TC4424 Dual High-Speed Power MOSFET Drivers

Product Images are shown for illustrative purposes only and may differ from actual product.

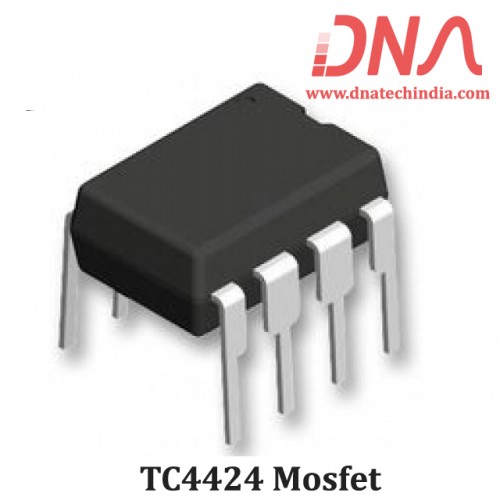

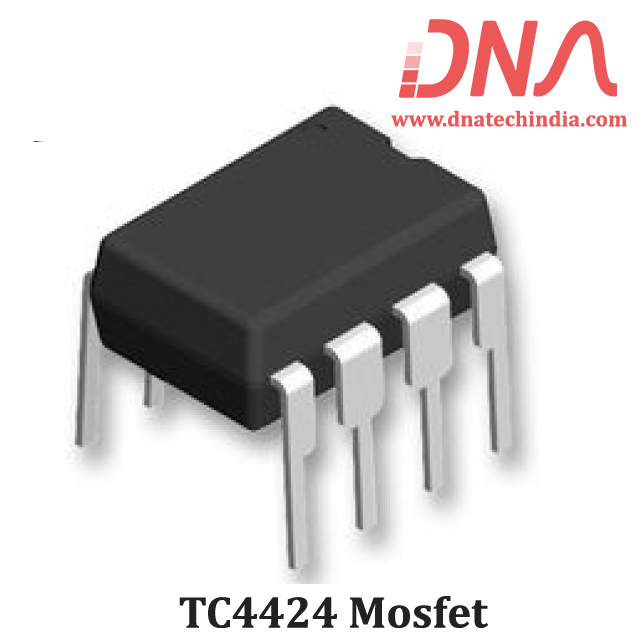

TC4424 Dual High-Speed Power MOSFET Drivers

  • Stock: Out Of Stock
  • SKU: 0701 | DAA032
  • Rs. 128.62 (inc GST)
    Rs.109.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

TC4424 3A Dual High-Speed Power MOSFET Drivers

The TC4423/TC4424/TC4425 devices are a family of 3A, dual-output buffers/MOSFET drivers.

Pin compatible with the TC1426/27/28, TC4426/27/28 and TC4426A/27A/28A dual 1.5A driver families, the TC4423/24/25 family has an increased latch-up current rating of 1.5A, making them even more robust for operation in harsh electrical environments. As MOSFET drivers, the TC4423/TC4424/TC4425 can easily charge 1800 pF gate capacitance in under 35 nsec, providing low enough impedances in both the on and off states to ensure the MOSFET's intended state will not be affected, even by large transients. The TC4424 MOSFET Drivers inputs may be driven  directly from either TTL or CMOS (2.4V to 18V). In addition, the 300 mV of built-in hysteresis provides noise immunity and allows the device to be driven from slowly rising or falling waveforms.

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TC4424 Dual High-Speed Power MOSFET Drivers

  • High Peak Output Current : 3A

  • Wide Input Supply Voltage Operating Range : 4.5V to 18V

  • High Capacitive Load Drive Capability : 1800 pF in 25 ns

  • Short Delay Times : <40 ns (typ)

  • Matched Rise/Fall Times

  • Low Supply Current :

            With Logic ‘ 1’ Input – 3.5 mA (Max)

            With Logic ‘ 0’ Input – 350 µA (Max)

  • Low Output Impedance: 3.5Ohm

  • Latch-Up Protected : Will Withstand 1.5A Reverse Current

  • Logic Input Will Withstand Negative Swing Up To 5V

  • ESD Protected : 4 kV

Applications of TC4424 Dual High-Speed Power MOSFET Drivers

  • Switch Mode Power Supplies

  • Pulse Transformer Drive

  • Line Drivers
