TLP350 Optocoupler MOSFET & IGBT Driver

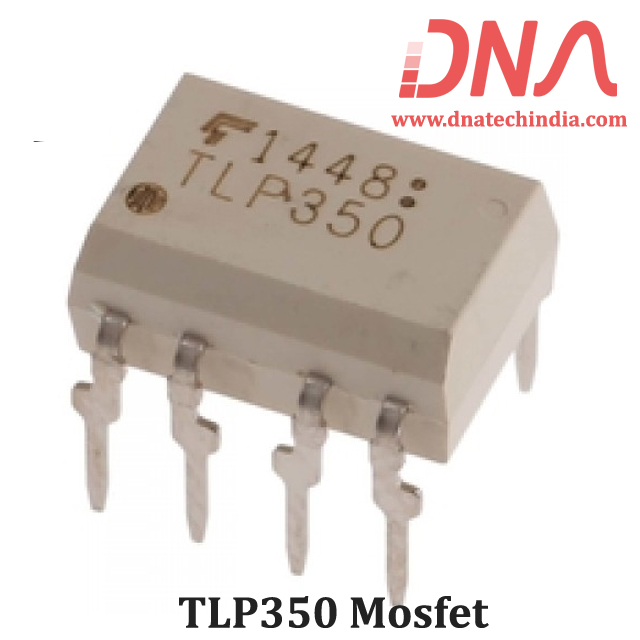

TOSHIBA TLP350 Optocoupler MOSFET Driver

TLP350 Optocoupler for driving IGBTs with ±2.5A output current, 3750 Vrms isolation voltage.

The TOSHIBA TLP350 Optocoupler MOSFET Driver is designed for gate driving IGBTs and power MOSFETs. This unit features a GaAℓAs light-emitting diode and an integrated photodetector in an 8-lead DIP package. With a peak output current of ±2.5A and a supply voltage range of 15 to 30 V, it ensures reliable operation in various applications. The TLP350 Optocoupler guarantees performance over a temperature range of -40 to 100°C, making it suitable for diverse environments.

This optocoupler also boasts a common mode transient immunity of 15 kV/μs and an isolation voltage of 3750 Vrms. Its fast switching time of 500 ns (max) and operating frequency of 50 kHz make it ideal for high-speed applications. The TLP350 Optocoupler MOSFET Driver is perfect for use in power electronics, industrial automation, and renewable energy systems.

With a storage temperature range of -55 to 125°C and robust lead soldering temperature tolerance, the TLP350 Optocoupler meets the rigorous demands of modern electronics. Explore the reliability and efficiency of this driver for your next project.

Explore the reliable TOSHIBA products at DNA. Our range of MOSFET & IGBT ensures top performance. Check other "MOSFET & IGBT" that we have in stock.

If you are searching for specific electronic components, reach out to us. We can import parts not available in India and support both retail and bulk orders. Explore our collection of Transistors, LCDs, Power Supplies, Analog ICs, and Connectors. Contact Us

Features of TOSHIBA TLP350 Optocoupler MOSFET Driver

• Peak output current ±2.5A
• Isolation voltage 3750 Vrms
• Supply voltage 15 to 30 V
• Switching time 500 ns
• Operating frequency 50 kHz
• Common mode transient immunity 15 kV/μs

Specification of TOSHIBA TLP350 Optocoupler MOSFET Driver

• Supply current ICC = 2 mA (max)
• Threshold input current IFLH = 5 mA (max)
• Operating temperature -40 to 100 °C
• Storage temperature -55 to 125 °C
• Lead soldering temperature 260 °C

Applications of TOSHIBA TLP350 Optocoupler MOSFET Driver

• Power electronics
• Industrial automation
• Renewable energy systems
• Motor control
• Signal isolation

Related Links for TOSHIBA TLP350 Optocoupler MOSFET Driver

• Other Products from MOSFET & IGBT Category

Package Includes

• 1 X TOSHIBA TLP350 Optocoupler MOSFET Driver
