• TDA8954 Class D audio power amplifier IC

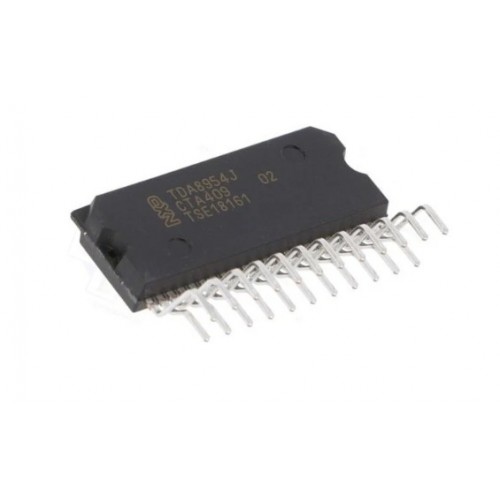

Product Images are shown for illustrative purposes only and may differ from actual product.

TDA8954 Class D audio power amplifier IC

  • Stock: Out Of Stock
  • SKU: 7281 | DAG521

Availability: NotInStock priceValidUntil: 2025-10-01

  • Rs. 1,451.68 (inc GST)
    Rs.1,230.24 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

TDA8954 Class D audio power amplifier IC

TDA8954 Two-Channel Class D audio power amplifier IC

The TDA8954 is a two-channel audio power amplifier that uses Class D technology. For each channel, the audio input signal is converted into a digital Pulse Width Modulation (PWM) signal using an analog input stage and a PWM modulator. To drive the output power transistors, the digital PWM signal is fed to a control and handshake block and to high- and low-side driver circuits. This level-shifts the low-power digital PWM signal from a logic level to a high-power PWM signal switching between the main supply lines. A second-order low-pass filter converts the PWM signal to an analog audio signal that can be used to drive a loudspeaker.

DNA solutions, Nashik has various types of DIP IC's. Check out our complete collection of DIP IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TDA8954 Class D audio power amplifier IC

  • Stereo full differential inputs, can be used as stereo SE or mono BTL amplifier
  • Smooth pop noise-free start-up and switch off
  • 2-pin diagnostics for protection circuits
  • Fixed frequency internal or external clock
  • High efficiency ≈93 %
  • Zero dead time switching
  • Low quiescent current
  • Advanced protection strategy: voltage protection and output current limiting

Applications of TDA8954 Class D audio power amplifier IC

  • Home Audio Systems: Suitable for use in high-power home theater and Hi-Fi systems.
  • Powered Speakers: Ideal for active speaker systems requiring high output power.
  • Subwoofer Amplifiers: Provides the necessary power for driving subwoofers in audio systems.
  • Car Audio Amplifiers: Can be used in automotive audio systems for high-power amplification.

    Package Includes

    • 1 x TDA8954 Class D audio power amplifier IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
