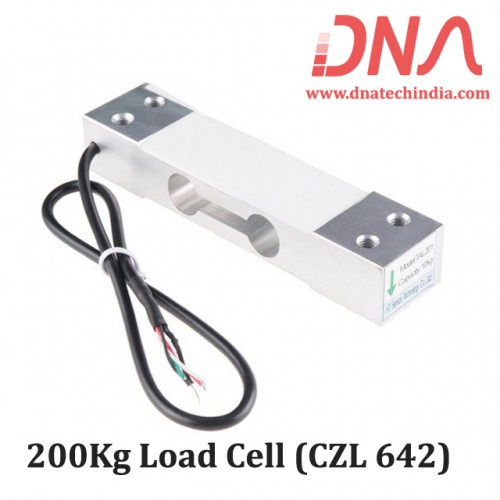

200 Kg Load cell CZL 642 - Electronic Weighing Scale Sensor

Flex Load Cell 200Kg for Electronic Weighing Scale

CZL642 Load Cell for weighing up to 200 Kg; Requires ADC or instrumentation amplifier; IP65 protection for durability.

The Flex Load Cell 200Kg for Electronic Weighing Scale is designed for accurate weight measurement in various applications. This load cell can measure weights up to 200 Kg, making it ideal for retail and industrial scales. It features a robust aluminum alloy construction and IP65 protection, ensuring reliability in different environments. The output is in millivolts and requires an ADC or instrumentation amplifier to be read by microcontrollers, which makes it suitable for modern electronic weighing systems.

With a total precision of C3 class, the Flex Load Cell 200Kg for Electronic Weighing Scale offers excellent accuracy and repeatability. It operates within a wide temperature range of -20 °C to +65 °C, making it versatile for various climates. This load cell is commonly used in weighing machines, bench scales, and counting scales, providing a dependable solution for weight measurement needs.

For those seeking to integrate this load cell with Arduino or Raspberry Pi, the HX711 Module is recommended. Explore our range of load cells and sensors to find the perfect fit for your electronic projects and ensure precise measurements with the Flex Load Cell 200Kg for Electronic Weighing Scale.

At DNA, we offer high-quality products from leading manufacturers in the Flex, force, Load and Pressure sensor category. Explore our range to find the right solution for your needs. Check other Flex, force, Load and Pressure sensor that we have in stock.

If you are looking for specific electronic components, DNA is here to help. We can import parts that are not readily available and support both retail and bulk orders. Explore related items like DC to DC Converter IC, Inductor, Nextion Display, Capacitor, IGBT, and HMI Display. Contact Us.

Features of Flex Load Cell 200Kg for Electronic Weighing Scale

• Single Point Load Cell
• Anodized aluminum alloy material
• IP65 protection
• High precision C3 class
• Wide operating temperature range

Specification of Flex Load Cell 200Kg for Electronic Weighing Scale

• Rated Load: 200 Kg
• Rated Output: 2.0 mV/V +/- 5%
• Input Resistance: 405 +/- 6 Ohm
• Output Resistance: 350 +/- 3 Ohm
• Safe Overload: 150% Full Scale
• Ultimate Overload: 200% Full Scale
• Operating Temperature: -20 °C to +65 °C

Applications of Flex Load Cell 200Kg for Electronic Weighing Scale

• Weighing scales
• Retail weighing applications
• Industrial weight measurement
• Counting scales
• Universal testing machines

Related Links for Flex Load Cell 200Kg for Electronic Weighing Scale

• Other Products from Flex, force, Load and Pressure sensor Category

Package Includes

• 1 X Flex Load Cell 200Kg for Electronic Weighing Scale
