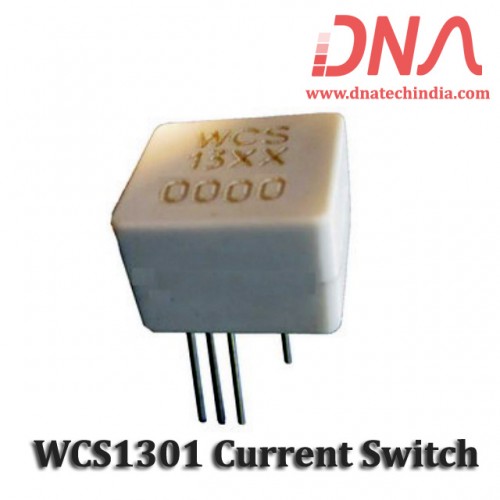

WCS1301 Hall Effect Current Switch


Write a review | 2 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-09-10

  • Brand: Winson
  • SKU: 767 | DAA580

Availability: NotInStock priceValidUntil: 2026-09-10

  • Rs. 259.60 (inc GST)
    Rs.220.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

WCS1301 Hall Effect Current Switch

WCS1301 Current Switch for current detection with low resistance and wide voltage range.

The WCS1301 Hall Effect Current Switch offers a reliable solution for current detection in industrial systems. With its low internal conductor resistance of 8.3 mΩ, it minimizes power loss and ensures high reliability. This switch operates within a voltage range of 2.6V to 18V and features a low operating current of 2.0mA, making it energy efficient.

In applications requiring electrical isolation, the WCS1301 Current Switch excels by eliminating the need for costly opto-isolators. It outputs 'Low' when the input current exceeds the operating point and 'High' when below the release point, ensuring precise control. This makes it ideal for short circuit detection and over-current fault detection in commercial electronic systems.

Choose the WCS1301 Hall Effect Current Switch for your projects to enhance performance while maintaining cost-effectiveness. Explore our collection of Current and Voltage Sensors for more options tailored to your needs.

Explore the reliable solutions from DNA for your Current and Voltage Sensor needs. The brand provides quality sensors for accurate current detection. Check other Current and Voltage Sensor that we have in stock.

At DNA, we cater to Indian electronics buyers. If you need specific parts, reach out to us. We can import if not available and support both retail and bulk purchases. Explore related items like Sensors, Inductors, Resistors, Microcontrollers, Programmers, and HMI Displays. Contact Us.

Features of WCS1301 Hall Effect Current Switch

  • 8.3 mΩ internal conductor resistance
  • Output 'Low' when IP>= Iop
  • Output 'High' when IP < Irp
  • Wide operating voltage range 2.6~18 V
  • Low operating current 2.0mA
  • 10K Hz bandwidth
  • Operating Point Iop: Min 0.6Amp
  • Max 1.0Amp
  • Release Point Irp: Min 0.2Amp

Specification of WCS1301 Hall Effect Current Switch

  • Internal conductor resistance: 8.3 mΩ
  • Operating voltage: 2.6V to 18V
  • Operating current: 2.0mA
  • Bandwidth: 10K Hz
  • Operating Point Iop: 0.6-1.0Amp
  • Release Point Irp: 0.2Amp

Applications of WCS1301 Hall Effect Current Switch

  • Short circuit detection
  • Load detection
  • Over-current fault detection
  • Industrial electronics
  • Commercial electronics

Related Links for WCS1301 Hall Effect Current Switch

Package Includes

  • 1 X WCS1301 Hall Effect Current Switch
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
